Harmonic Drive RSF

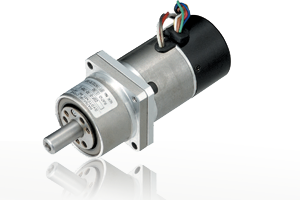

Harmonic Drive RSF solid-shaft servo actuators combine a brushless motor, reduction gear and incremental feedback. The standard RSF, RSF-Mini and RSF-Supermini ranges cover distinctly different sizes and operating points; they should be selected as specific actuator configurations with a compatible external servo drive.
Key Specifications
Standard RSF | Sizes 17A, 20A, 25A and 32A; ratios 50:1 and 100:1 |
Standard RSF rated-torque examples | RSF-17A ratio 50:9.8 Nm; ratio 100:20 Nm. RSF-32A ratio 50:49 Nm; ratio 100:98 Nm |
Standard RSF momentary-peak examples | RSF-17A ratio 50:34 Nm; RSF-32A ratio 100:330 Nm; not continuous ratings |
RSF-Mini | Sizes 8B, 11B and 14B; ratios 30:1, 50:1 and 100:1;24V drive arrangements |
RSF-14B ratio 100 example | 6 Nm maximum continuous torque;28 Nm maximum torque;60 rpm maximum speed |
RSF-Supermini | Sizes 3C and 5B; ratios 30:1, 50:1 and 100:1 |
RSF-5B ratio 100 example | 0.44 Nm rated torque at 45 rpm;1.4 Nm maximum torque |
Feedback and brake scope | Incremental feedback; optional brake listed for Supermini 5B; exact ordering code governs |
Drive boundary | External compatible drive required; RSF-5B IDT is a separate integrated-drive product |
Applications and Industries
Solid-shaft rotary positioning, compact robot mechanisms and precision equipment axes selected for their actual torque, speed, load support and control requirements.
Robotics; semiconductor equipment; LCD manufacturing; precision automation
Review Summary
RSF is useful when a motor-and-gear assembly with a supported output shaft fits the machine better than independently assembled motion components. The central selection task is choosing the correct range and ratio. Rated torque, continuous limits, momentary peaks and output-equivalent encoder counts must stay attached to their exact model.
Price and Configuration
Request a quote for the selected configuration,quantity and delivery schedule. Confirm the exact model,options,integration scope and support terms.
