ATI Industrial Automation QC-110 Overview

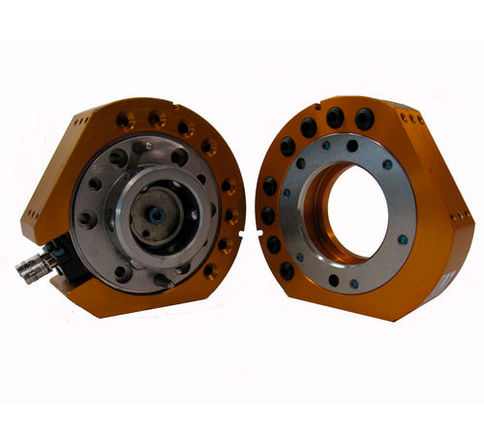

The ATI QC-110 is a pneumatic robotic tool changer with a suggested payload limit of 180 kg and a static moment capacity of 784 Nm in X/Y and in Z. It is designed for automatic tool exchange on medium and large robots in handling, welding and assembly cells, using a fail-safe locking mechanism that develops 12000 N of locking force at 5.5 bar. The master plate weighs 3.63 kg and the tool plate 2.27 kg, giving 5.9 kg when coupled, and the coupling repeats to within 0.0152 mm. Eight 3/8 NPT or G 1/4 pneumatic ports pass through the changer, and the plates can lock from up to 3 mm apart.
Key Specifications
Specification | ATI Industrial Automation QC-110 |
Manufacturer | ATI Industrial Automation |
Model | QC-110 |
Category | End effector / Tool changer |
Payload | 180 kg |
Repeatability | ±0.0152 mm |
Price | From USD 4,000 |
Prices are indicative, are not final and may change.
Applications
Robot end-of-arm tooling
Gripping
Machine tending
Assembly
Packaging
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
Suggested payload 180 kg
Static moment capacity 784 Nm (X/Y), 784 Nm (Z)
Weight 3.63 kg master, 2.27 kg tool, 5.9 kg coupled
Positional repeatability 0.0152 mm
Pneumatic fail-safe locking mechanism, 12000 N locking force at 5.5 bar
Pass-through ports (8) 3/8 NPT or (8) G 1/4
ATI Industrial Automation QC-110 Review Summary
The ATI QC-110 is a pneumatic robotic tool changer with a suggested payload limit of 180 kg and a static moment capacity of 784 Nm in X/Y and in Z. It is designed for automatic tool exchange on medium and large robots in handling, welding and assembly cells, using a fail-safe locking mechanism that develops 12000 N of locking force at 5.5 bar. The master plate weighs 3.63 kg and the tool plate 2.27 kg, giving 5.9 kg when coupled, and the coupling repeats to within 0.0152 mm. Eight 3/8 NPT or G 1/4 pneumatic ports pass through the changer, and the plates can lock from up to 3 mm apart. It is listed from USD 4,000.
Pros
Payload of up to 180 kg
±0.0152 mm repeatability
Cons
Compatibility with the robot and controller must be confirmed before ordering
Mounting, cabling and integration are quoted separately
Who It Is For
The ATI QC-110 fits robot users and integrators who need one robot to work with several tools.
