ATI Industrial Automation QC-11 Overview

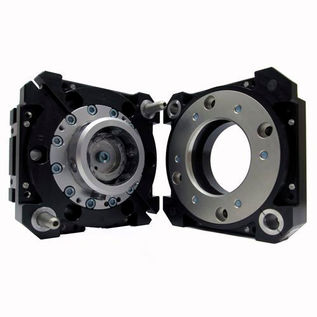

The ATI QC-11 is a pneumatic robotic tool changer with a suggested payload limit of 16 kg and static moment capacities of 20.3 Nm in X/Y and 12.4 Nm in Z. It is designed for automatic exchange of grippers and other end-of-arm tools on small robots, using a fail-safe locking mechanism that develops 1100 N of locking force at 5.5 bar. The master plate weighs 0.163 kg and the tool plate 0.0816 kg, and the coupling repeats to within 0.0102 mm. Six M5 or #10-32 pneumatic ports pass through the changer, and electrical modules mount on its flat.
Key Specifications
Specification | ATI Industrial Automation QC-11 |
Manufacturer | ATI Industrial Automation |
Model | QC-11 |
Category | End effector / Tool changer |
Payload | 16 kg |
Repeatability | ±0.0102 mm |
Price | From USD 1,000 |
Prices are indicative, are not final and may change.
Applications
Robot end-of-arm tooling
Gripping
Machine tending
Assembly
Packaging
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
Suggested payload 16 kg
Static moment capacity 20.3 Nm (X/Y), 12.4 Nm (Z)
Weight 0.163 kg master, 0.0816 kg tool
Positional repeatability 0.0102 mm
Pneumatic fail-safe locking mechanism, 1100 N locking force at 5.5 bar
Pass-through ports (6) M5 or #10-32
ATI Industrial Automation QC-11 Review Summary
The ATI QC-11 is a pneumatic robotic tool changer with a suggested payload limit of 16 kg and static moment capacities of 20.3 Nm in X/Y and 12.4 Nm in Z. It is designed for automatic exchange of grippers and other end-of-arm tools on small robots, using a fail-safe locking mechanism that develops 1100 N of locking force at 5.5 bar. The master plate weighs 0.163 kg and the tool plate 0.0816 kg, and the coupling repeats to within 0.0102 mm. Six M5 or #10-32 pneumatic ports pass through the changer, and electrical modules mount on its flat. It is listed from USD 1,000.
Pros
Payload of up to 16 kg
±0.0102 mm repeatability
Cons
Compatibility with the robot and controller must be confirmed before ordering
Mounting, cabling and integration are quoted separately
Who It Is For
The ATI QC-11 fits robot users and integrators who need one robot to work with several tools.
Full review: ATI QC-11 Review: Specs, Price and Applications
