SMC MHF2 Overview

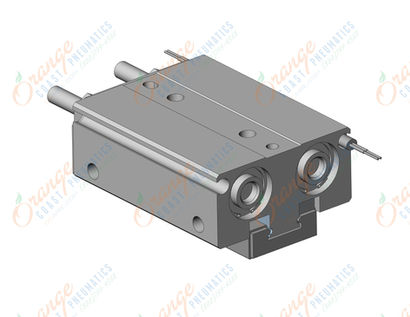

The SMC MHF2 is a low-profile two-finger parallel pneumatic gripper available in bore sizes of 8, 12, 16, 20, 25 and 32 mm, with a gripping force per finger of 19 N to 400 N at 0.5 MPa and a repeatability of ±0.05 mm. Each size comes in a short, medium and long stroke, giving opening/closing strokes from 8 mm up to 128 mm. Its flat body is designed for installations with little height above the workpiece, and for parts of differing widths. The gripper weighs between 65 g and 3,200 g and runs double acting on unlubricated compressed air at 0.1 to 0.7 MPa (0.15 to 0.7 MPa for the 8 mm bore) at -10 to 60 °C.
Key Specifications
Specification | SMC MHF2 |
Manufacturer | SMC |
Model | MHF2 |
Category | End effector / Gripper |
Repeatability | ±0.05 mm |
Price | From USD 440 |
Prices are indicative, are not final and may change.
Applications
Robot end-of-arm tooling
Gripping
Machine tending
Assembly
Packaging
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
Pneumatic
2 fingers, parallel, low profile
Bore sizes 8 / 12 / 16 / 20 / 25 / 32 mm
Stroke 8 to 128 mm (short, medium and long stroke per size)
Gripping force per finger 19 / 48 / 90 / 141 / 240 / 400 N at 0.5 MPa
Weight 65 to 3,200 g
Operating pressure 0.1 to 0.7 MPa (8 mm bore: 0.15 to 0.7 MPa)
Double acting
-10 to 60 °C
SMC MHF2 Review Summary
The SMC MHF2 is a low-profile two-finger parallel pneumatic gripper available in bore sizes of 8, 12, 16, 20, 25 and 32 mm, with a gripping force per finger of 19 N to 400 N at 0.5 MPa and a repeatability of ±0.05 mm. Each size comes in a short, medium and long stroke, giving opening/closing strokes from 8 mm up to 128 mm. Its flat body is designed for installations with little height above the workpiece, and for parts of differing widths. The gripper weighs between 65 g and 3,200 g and runs double acting on unlubricated compressed air at 0.1 to 0.7 MPa (0.15 to 0.7 MPa for the 8 mm bore) at -10 to 60 °C. It is listed from USD 440.
Pros
Repeatability: ±0.05 mm
Gripping force per finger 19 / 48 / 90 / 141 / 240 / 400 N at 0.5 MPa
Cons
Compatibility with the robot and controller must be confirmed before ordering
Mounting, cabling and integration are quoted separately
Who It Is For
The SMC MHF2 fits robot users and integrators who need a gripper for handling, machine tending or assembly.
