SMC LEHF Overview

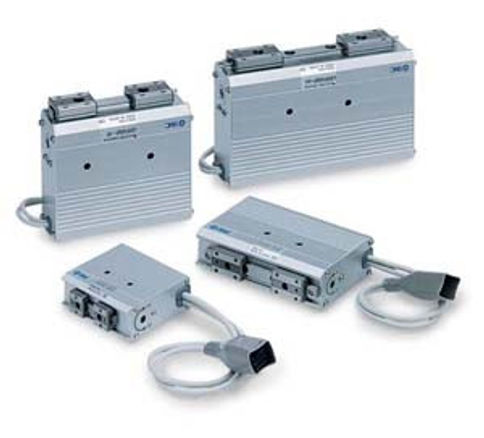

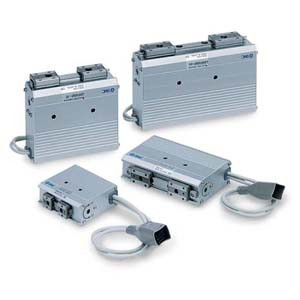

The SMC LEHF is a two-finger electric gripper with a long opening/closing stroke of 16 to 40 mm in the basic version and 32 to 80 mm in the long-stroke version, a gripping force of 3 N to 180 N across the four body sizes (10, 20, 32 and 40) and a repeatability of ±0.05 mm. It is designed for gripping workpieces of widely differing dimensions with one tool, with position, speed and force programmable at up to 64 points. The gripper weighs between 340 g and 2,500 g, is driven by a 24 VDC step motor with servo control and operates at 5 to 40 °C. It is run from an SMC step motor controller with parallel I/O or a fieldbus connection.
Key Specifications
Specification | SMC LEHF |
Manufacturer | SMC |
Model | LEHF |
Category | End effector / Gripper |
Repeatability | ±0.05 mm |
Speed | 5 to 100 mm/s |
Controller | SMC JXC series, LECP1 or LECPA step motor controller |
Interfaces | Parallel I/O; EtherCAT; EtherNet/IP; PROFINET; DeviceNet; IO-Link; CC-Link |
Price | From USD 910 |
Prices are indicative, are not final and may change.
Applications
Robot end-of-arm tooling
Gripping
Machine tending
Assembly
Packaging
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
Electric (24 VDC step motor, servo)
2 fingers, parallel
Body sizes 10 / 20 / 32 / 40
Stroke 16 to 40 mm (basic), 32 to 80 mm (long stroke)
Gripping force 3 to 180 N
Opening/closing speed 5 to 100 mm/s
Weight 340 to 2,500 g
5 to 40 °C
SMC LEHF Review Summary
The SMC LEHF is a two-finger electric gripper with a long opening/closing stroke of 16 to 40 mm in the basic version and 32 to 80 mm in the long-stroke version, a gripping force of 3 N to 180 N across the four body sizes (10, 20, 32 and 40) and a repeatability of ±0.05 mm. It is designed for gripping workpieces of widely differing dimensions with one tool, with position, speed and force programmable at up to 64 points. The gripper weighs between 340 g and 2,500 g, is driven by a 24 VDC step motor with servo control and operates at 5 to 40 °C. It is run from an SMC step motor controller with parallel I/O or a fieldbus connection. It is listed from USD 910.
Pros
Repeatability: ±0.05 mm
Speed: 5 to 100 mm/s
Gripping force 3 to 180 N
Wide choice of communication interfaces
Cons
Compatibility with the robot and controller must be confirmed before ordering
Mounting, cabling and integration are quoted separately
Who It Is For
The SMC LEHF fits robot users and integrators who need a gripper for handling, machine tending or assembly.
