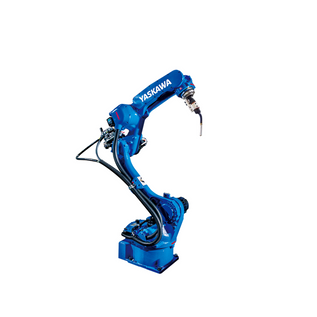

Yaskawa Motoman AR900 Overview

The Yaskawa Motoman AR900 is a 6-axis arc welding robot with a maximum payload of 7 kg, a horizontal reach of 927 mm and a repeatability of ±0.01 mm. It belongs to Yaskawa's AR series of arc welding robots. The arm weighs 37 kg and is installed on the floor, wall, ceiling or tilted, and it runs on the YRC1000 controller.

Key Specifications

Prices are indicative, are not final and may change.

Applications

• Arc welding

• Spot welding

• Cutting

• Material handling

• Machine tending

Industries

Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics

Technical Details

• 6 controlled axes

• Max. payload 7 kg

• Horizontal reach 927 mm

• Repeatability ±0.01 mm

• Mass 37 kg

• Installation floor, wall, ceiling, tilted

• Controller YRC1000

Yaskawa Motoman AR900 Review Summary

The Yaskawa Motoman AR900 is a 6-axis arc welding robot with a maximum payload of 7 kg, a horizontal reach of 927 mm and a repeatability of ±0.01 mm. It belongs to Yaskawa's AR series of arc welding robots. The arm weighs 37 kg and is installed on the floor, wall, ceiling or tilted, and it runs on the YRC1000 controller. It is listed from USD 14,500.

Pros

• 7 kg maximum payload with a 927 mm reach

• ±0.01 mm repeatability

• Several installation options: floor, wall, ceiling, tilted

• Wide choice of industrial fieldbus interfaces

Cons

• Needs safety fencing or equivalent safeguarding

• The 7 kg maximum payload includes the end effector

• End effectors, safety equipment and integration are quoted separately

Who It Is For

The Yaskawa Motoman AR900 fits fabricators and manufacturers that are automating arc welding.
