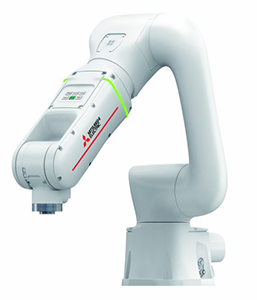

Mitsubishi Electric ASSISTA RV-5AS-D Overview
The Mitsubishi Electric MELFA ASSISTA RV-5AS-D is a 6-axis collaborative robot with a 5 kg rated payload, a 910 mm reach and ±0.03 mm repeatability. It is designed to work alongside operators without safety fencing, moving at up to 250 mm/s in collaborative operation and up to 1,000 mm/s in high-speed operation. The IP54 arm suits assembly, machine tending, inspection and pick-and-place tasks. The arm weighs 32 kg, mounts on the floor or ceiling and runs on the CR800-05VD controller.
Key Specifications
Specification | Mitsubishi Electric ASSISTA RV-5AS-D |
Manufacturer | Mitsubishi Electric |
Model | ASSISTA RV-5AS-D |
Category | Robot arm / Collaborative robot |
Payload | 5 kg |
Reach | 910 mm |
Repeatability | ±0.03 mm |
Speed | Max. composite speed 1,000 mm/s; 250 mm/s in collaborative operation |
Axes (DoF) | 6 |
Controller | Mitsubishi CR800-05VD |
Interfaces | Ethernet; CC-Link; CC-Link IE; PROFINET; EtherNet/IP; EtherCAT; PROFIBUS; DeviceNet |
Certifications | ISO 10218-1; ISO/TS 15066 |
Price | From USD 34,000 |
Prices are indicative, are not final and may change.
Applications
Assembly
Electronics handling
Machine tending
Packaging
Inspection
Industries
Electronics · Automotive · Food · Pharmaceuticals · General manufacturing
Technical Details
6 axes
Rated payload 5 kg (max. 5.5 kg)
Reach 910 mm
Repeatability ±0.03 mm
Max. composite speed 1,000 mm/s (250 mm/s in collaborative operation)
Mass 32 kg
Mounting floor, ceiling
Protection IP54
Controller CR800-05VD
Mitsubishi Electric ASSISTA RV-5AS-D Review Summary
The Mitsubishi Electric MELFA ASSISTA RV-5AS-D is a 6-axis collaborative robot with a 5 kg rated payload, a 910 mm reach and ±0.03 mm repeatability. It is designed to work alongside operators without safety fencing, moving at up to 250 mm/s in collaborative operation and up to 1,000 mm/s in high-speed operation. The IP54 arm suits assembly, machine tending, inspection and pick-and-place tasks. The arm weighs 32 kg, mounts on the floor or ceiling and runs on the CR800-05VD controller. It is listed from USD 34,000.
Pros
5 kg maximum payload with a 910 mm reach
±0.03 mm repeatability
Speed: Max. composite speed 1,000 mm/s; 250 mm/s in collaborative operation
Several installation options: floor, ceiling
Collaborative design for work near people, subject to a risk assessment
Wide choice of industrial fieldbus interfaces
Cons
The 5 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The Mitsubishi Electric ASSISTA RV-5AS-D fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
