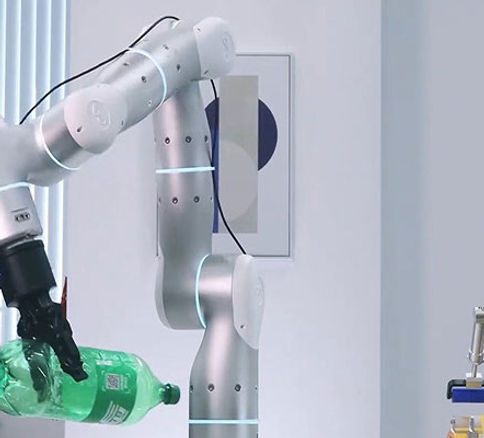

Flexiv Rizon 10 + F/T Sensor Overview
The Flexiv Rizon 10 + F/T Sensor is a 7-axis adaptive collaborative robot that combines a 10 kg payload with a wrist-mounted force/torque sensor. Its reach is 984 mm and its pose repeatability is ±0.05 mm. Force sensing accuracy is 0.2 N, with a maximum TCP force of 350 N and a typical TCP linear speed of 1.0 m/s. The arm weighs 39 kg and is rated IP65.
Key Specifications
Specification | Flexiv Rizon 10 + F/T Sensor |
Manufacturer | Flexiv |
Model | Rizon 10 + F/T Sensor |
Category | Robot arm / Collaborative robot |
Payload | 10 kg |
Reach | 984 mm |
Repeatability | ±0.05 mm |
Speed | 1.0 m/s typical TCP linear speed |
Axes (DoF) | 7 |
Controller | Flexiv Hesper robot controller (12 kg, 423 × 230 × 230 mm, IP20, 500 W) |
Interfaces | Profinet, Modbus TCP/IP, 16 digital inputs, 16 digital outputs |
Certifications | CE, ETL |
Price | From USD 59,000 |
Prices are indicative, are not final and may change.
Applications
Force-controlled assembly
Polishing
Sanding
Insertion
Mobile manipulation
Inspection
Industries
Electronics · Automotive · Consumer goods · Research · Logistics
Technical Details
Weight: 39 kg. Protection rating: IP65. Force sensing accuracy: 0.2 N. Maximum TCP force: 350 N. Mounting flange: ISO 9409-1-50-4-M6. Installation position: any. Noise: <70 dB. Operating temperature: 0 to 45 °C. Controller power consumption: 500 W
Flexiv Rizon 10 + F/T Sensor Review Summary
The Flexiv Rizon 10 + F/T Sensor is a 7-axis adaptive collaborative robot that combines a 10 kg payload with a wrist-mounted force/torque sensor. Its reach is 984 mm and its pose repeatability is ±0.05 mm. Force sensing accuracy is 0.2 N, with a maximum TCP force of 350 N and a typical TCP linear speed of 1.0 m/s. The arm weighs 39 kg and is rated IP65. It is listed from USD 59,000.
Pros
10 kg maximum payload with a 984 mm reach
±0.05 mm repeatability
Speed: 1.0 m/s typical TCP linear speed
Collaborative design for work near people, subject to a risk assessment
Seventh axis adds flexibility in tight cells
Cons
The 10 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The Flexiv Rizon 10 + F/T Sensor fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
