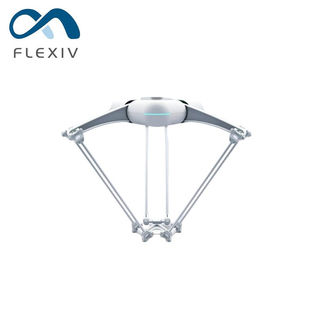

Flexiv Moonlight Overview

The Flexiv Moonlight is a force-controlled parallel robot with 3 degrees of freedom. Its workspace measures 1200 mm in diameter and 400 mm in height, and poses are repeated to ±0.05 mm. Typical TCP linear speed is 1.5 m/s with an acceleration of 15 m/s². The 38 kg unit is rated IP65, can be installed in any position and works with the Flexiv Hesper robot controller.

Key Specifications

Prices are indicative, are not final and may change.

Applications

• Force-controlled assembly

• Polishing

• Sanding

• Insertion

• Mobile manipulation

• Inspection

Industries

Electronics · Automotive · Consumer goods · Research · Logistics

Technical Details

Weight: 38 kg. Protection rating: IP65. Typical TCP linear acceleration: 15 m/s². Robot base: Ø206 mm. Mounting flange: ISO 9409-1-50-4-M6. Installation position: any. Operating temperature: 0 to 45 °C

Flexiv Moonlight Review Summary

The Flexiv Moonlight is a force-controlled parallel robot with 3 degrees of freedom. Its workspace measures 1200 mm in diameter and 400 mm in height, and poses are repeated to ±0.05 mm. Typical TCP linear speed is 1.5 m/s with an acceleration of 15 m/s². The 38 kg unit is rated IP65, can be installed in any position and works with the Flexiv Hesper robot controller. It is listed from USD 25,000.

Pros

• ±0.05 mm repeatability

• Speed: 1.5 m/s typical TCP linear speed

Cons

• 3 axes limit tool orientation compared with a 6-axis arm

• Needs safety fencing or equivalent safeguarding

• End effectors, safety equipment and integration are quoted separately

Who It Is For

The Flexiv Moonlight fits lines that need fast, precise picking and placing in a compact footprint.

Full review: Flexiv Moonlight Review: Specs, Price and Applications of the Parallel Robot
