FANUC M-3iA/6A Overview

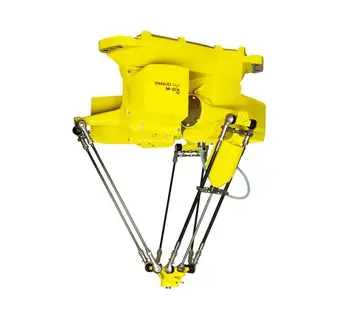

The FANUC M-3iA/6A is a 6-axis delta robot with a 6 kg payload, a 1350 mm working diameter and a repeatability of ±0.1 mm. Its three-axis wrist lets it turn and tilt parts, which suits high-speed picking, packing and assembly. The robot weighs 175 kg, is mounted on the ceiling of the cell and runs on the FANUC R-30iB Plus series controller.

Key Specifications

Prices are indicative, are not final and may change.

Applications

• Picking

• Packing

• Packaging

• Sorting

• High-speed transfer

Industries

Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics

Technical Details

• 6 controlled axes

• Max. wrist payload 6 kg

• Working diameter 1350 mm

• Repeatability ±0.1 mm

• Mass 175 kg

• Installation ceiling

• Controller R-30iB Plus series

FANUC M-3iA/6A Review Summary

The FANUC M-3iA/6A is a 6-axis delta robot with a 6 kg payload, a 1350 mm working diameter and a repeatability of ±0.1 mm. Its three-axis wrist lets it turn and tilt parts, which suits high-speed picking, packing and assembly. The robot weighs 175 kg, is mounted on the ceiling of the cell and runs on the FANUC R-30iB Plus series controller. It is listed from USD 42,000.

Pros

• 6 kg maximum payload with a φ1350 mm working envelope

• ±0.1 mm repeatability

• Wide choice of industrial fieldbus interfaces

Cons

• Repeatability of ±0.1 mm is wider than on smaller precision robots

• Needs safety fencing or equivalent safeguarding

• The 6 kg maximum payload includes the end effector

• End effectors, safety equipment and integration are quoted separately

Who It Is For

The FANUC M-3iA/6A fits food, pharmaceutical and electronics lines that need high-speed picking and packing.

Full review: FANUC M-3iA/6A Review: Specs, Price and Applications of the 6 kg Delta Robot
