FANUC M-1iA/1HL Overview

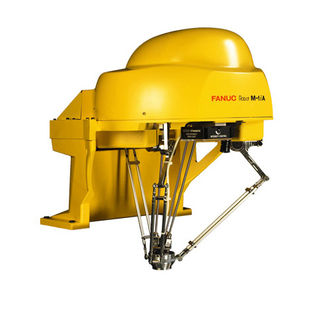

The FANUC M-1iA/1HL is a lightweight 3-axis delta robot with a 1 kg payload, a 420 mm working diameter and a repeatability of ±0.03 mm. It is the long-arm version of the M-1iA/1H, designed for high-speed picking, sorting and assembly of small parts. The robot weighs 18 kg.

Key Specifications

Prices are indicative, are not final and may change.

Applications

• Picking

• Packing

• Packaging

• Sorting

• High-speed transfer

Industries

Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics

Technical Details

• 3 controlled axes

• Max. wrist payload 1 kg

• Working diameter 420 mm

• Repeatability ±0.03 mm

• Mass 18 kg

FANUC M-1iA/1HL Review Summary

The FANUC M-1iA/1HL is a lightweight 3-axis delta robot with a 1 kg payload, a 420 mm working diameter and a repeatability of ±0.03 mm. It is the long-arm version of the M-1iA/1H, designed for high-speed picking, sorting and assembly of small parts. The robot weighs 18 kg. It is listed from USD 24,000.

Pros

• 1 kg maximum payload with a φ420 mm working envelope

• ±0.03 mm repeatability

Cons

• 3 axes limit tool orientation compared with a 6-axis arm

• Needs safety fencing or equivalent safeguarding

• The 1 kg maximum payload includes the end effector

• End effectors, safety equipment and integration are quoted separately

Who It Is For

The FANUC M-1iA/1HL fits food, pharmaceutical and electronics lines that need high-speed picking and packing.

Full review: FANUC M-1iA/1HL Review: Specs, Price and Applications of the 1 kg Delta Robot
