KUKA LBR iiwa 7 R800 Overview

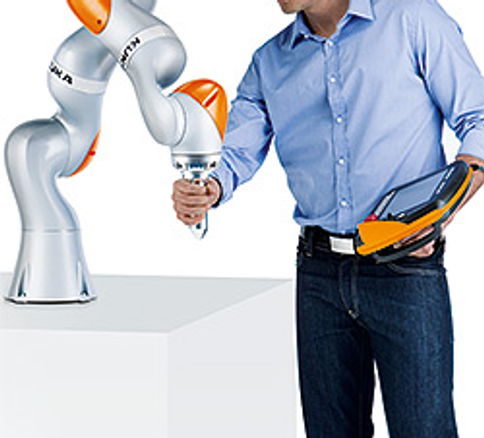

The KUKA LBR iiwa 7 R800 is a 7-axis lightweight collaborative robot with a payload of 7 kg, a maximum reach of 800 mm and a pose repeatability of ±0.1 mm. Its seven-axis arm is designed for sensitive assembly work and direct human-robot collaboration. The robot weighs about 23.9 kg, is installed on the floor, ceiling or wall and runs on the KUKA Sunrise Cabinet controller.
Key Specifications
Specification | KUKA LBR iiwa 7 R800 |
Manufacturer | KUKA |
Model | LBR iiwa 7 R800 |
Category | Robot arm / Collaborative robot |
Payload | 7 kg |
Reach | 800 mm |
Repeatability | ±0.1 mm |
Axes (DoF) | 7 |
Controller | KUKA Sunrise Cabinet |
Interfaces | EtherCAT (KUKA Extension Bus); Ethernet (KUKA Line Interface); safety interface X11; USB |
Certifications | CE; EN ISO 10218-1; EN ISO 13849-1 Cat. 3 / PL d; SIL 2 (EN 62061) |
Price | From USD 50,000 |
Prices are indicative, are not final and may change.
Applications
Material handling
Machine tending
Assembly
Packaging
Inspection
Dispensing
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
7 axes
Payload 7 kg
Reach 800 mm
Repeatability ±0.1 mm
Weight 23.9 kg
Mounting floor, ceiling, wall
Controller Sunrise Cabinet
KUKA LBR iiwa 7 R800 Review Summary
Shortlist the LBR iiwa 7 R800 when its payload, reach and installation layout fit your cell. Validate full tool and workpiece load, cycle time, environment, access and installed cost.
