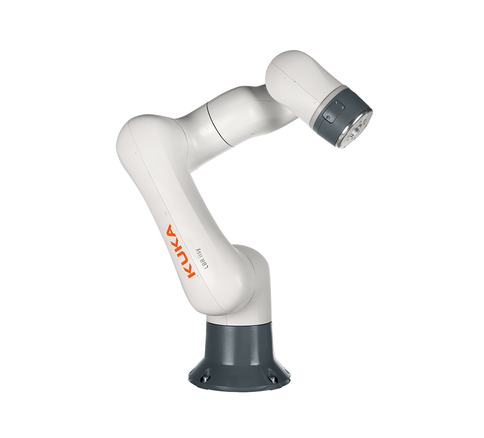

KUKA LBR iisy 3 R760 Overview
The KUKA LBR iisy 3 R760 is a 6-axis collaborative robot with a payload of 3 kg, a maximum reach of 760 mm and a pose repeatability of ±0.1 mm. It is built for collaborative tasks such as machine tending, assembly, handling and palletizing in workspaces shared with people. The robot weighs about 22.8 kg, is installed on the floor, ceiling or wall or at an angle and runs on the KUKA KR C5 micro-2 controller.
Key Specifications
Specification | KUKA LBR iisy 3 R760 |
Manufacturer | KUKA |
Model | LBR iisy 3 R760 |
Category | Robot arm / Collaborative robot |
Payload | 3 kg |
Reach | 760 mm |
Repeatability | ±0.1 mm |
Axes (DoF) | 6 |
Controller | KUKA KR C5 micro-2 |
Interfaces | PROFINET; PROFIsafe; EtherNet/IP; CIP Safety; EtherCAT; Ethernet; 16 digital I/O |
Certifications | IEC 61340-5-1 (ESD) |
Price | From USD 27,400 |
Prices are indicative, are not final and may change.
Applications
Material handling
Machine tending
Assembly
Packaging
Inspection
Dispensing
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
6 axes
Payload 3 kg
Reach 760 mm
Repeatability ±0.1 mm
Weight 22.8 kg
Mounting floor, ceiling, wall, angle
Controller KR C5 micro-2
KUKA LBR iisy 3 R760 Review Summary
Shortlist the LBR iisy 3 R760 when its payload, reach and installation layout fit your cell. Validate full tool and workpiece load, cycle time, environment, access and installed cost.
