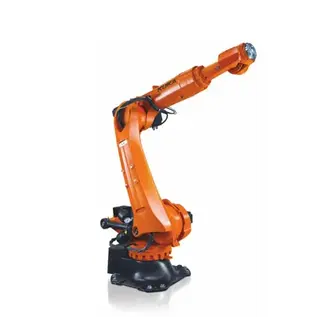

KUKA KR CYBERTECH nano KR 8 Overview
The KUKA KR CYBERTECH nano KR 8 is a 6-axis industrial robot with a payload of 8 kg, a maximum reach of 1640 mm and a pose repeatability of ±0.04 mm. It is designed for handling small components, assembly, machine tending and path applications such as bonding and sealing, with IP65 protection on the main axes and IP67 on the wrist. It is installed on the floor, ceiling or wall or at an angle and runs on the KUKA KR C5 / KR C5 micro controller.
Key Specifications
Specification | KUKA KR CYBERTECH nano KR 8 |
Manufacturer | KUKA |
Model | KR CYBERTECH nano KR 8 |
Category | Robot arm / Industrial 6-axis robot |
Payload | 8 kg |
Reach | 1640 mm |
Repeatability | ±0.04 mm |
Axes (DoF) | 6 |
Controller | KUKA KR C5 / KR C5 micro |
Interfaces | PROFINET; PROFIsafe; EtherNet/IP; CIP Safety; EtherCAT; Ethernet; digital I/O 24 V |
Certifications | ISO 10218-1; ISO 13849-1 Cat. 3 / PL d; UL/CSA |
Price | From USD 46,000 |
Prices are indicative, are not final and may change.
Applications
Material handling
Machine tending
Assembly
Packaging
Inspection
Dispensing
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
6 axes
Payload 8 kg
Reach 1640 mm
Repeatability ±0.04 mm
Mounting floor, ceiling, wall, angle
Controller KR C5 / KR C5 micro
KUKA KR CYBERTECH nano KR 8 Review Summary
Shortlist the KR CYBERTECH nano KR 8 when payload, reach and installation layout fit the cell. Validate tool and workpiece load, cycle time, environment, access and full installed cost.
