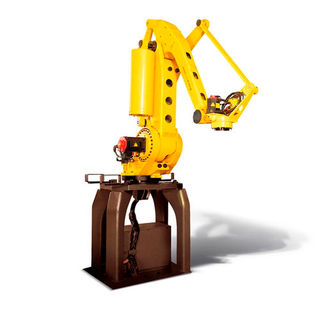

FANUC M-410iC/700 Overview
The FANUC M-410iC/700 is a 4-axis palletizing robot with a maximum wrist payload of 700 kg and a horizontal reach of 3143 mm, repeatable to ±0.05 mm. It is a dedicated palletizing robot. The mechanical unit weighs 2700 kg (controller included), mounts on the floor, and runs on the R-30iB Plus (A- or B-cabinet) controller.
Key Specifications
Specification | FANUC M-410iC/700 |
Manufacturer | FANUC |
Model | M-410iC/700 |
Category | Robot arm / Palletizing robot |
Payload | 700 kg |
Reach | 3143 mm |
Repeatability | ±0.05 mm |
Axes (DoF) | 4 |
Controller | FANUC R-30iB Plus (A- or B-cabinet) |
Interfaces | EtherNet/IP; PROFINET; EtherCAT; DeviceNet; CC-Link; CC-Link IE Field; PROFIBUS; FL-net; Modbus; OPC UA |
Certifications | PL e, Cat. 4, SIL 3 emergency stop function; PL d, Cat. 3, SIL 2 position/speed check function |
Price | From USD 150,000 |
Prices are indicative, are not final and may change.
Applications
Material handling
Machine tending
Assembly
Packaging
Inspection
Dispensing
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
4 controlled axes
Max. wrist payload 700 kg
Horizontal reach 3143 mm
Repeatability ±0.05 mm
Mass 2700 kg (controller included)
Installation floor
Controller R-30iB Plus (A- or B-cabinet)
FANUC M-410iC/700 Review Summary
The FANUC M-410iC/700 is a 4-axis palletizing robot with a maximum wrist payload of 700 kg and a horizontal reach of 3143 mm, repeatable to ±0.05 mm. It is a dedicated palletizing robot. The mechanical unit weighs 2700 kg (controller included), mounts on the floor, and runs on the R-30iB Plus (A- or B-cabinet) controller. It is listed from USD 150,000.
Pros
700 kg maximum payload with a 3143 mm reach
±0.05 mm repeatability
Wide choice of industrial fieldbus interfaces
Cons
4 axes limit tool orientation compared with a 6-axis arm
Needs safety fencing or equivalent safeguarding
The 700 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The FANUC M-410iC/700 fits end-of-line operations that palletize cases, bags or crates.
Full review: FANUC M-410iC/700 Review: Specs, Price and Applications of the 700 kg Palletizing Robot
