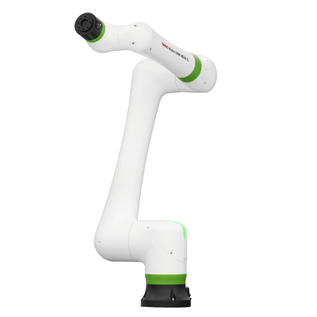

FANUC CRX-25iA Overview
Discontinued model: no longer part of the current FANUC product range. The FANUC CRX-25iA is a 6-axis collaborative robot with a 25 kg payload, an 1889 mm reach and a repeatability of ±0.05 mm. It is designed for heavier collaborative work such as handling, assembly, palletizing and arc welding. The arm weighs 135 kg and can be mounted on the floor, upside-down or at an angle.
Key Specifications
Specification | FANUC CRX-25iA |
Manufacturer | FANUC |
Model | CRX-25iA |
Category | Robot arm / Collaborative robot |
Payload | 25 kg |
Reach | 1889 mm |
Repeatability | ±0.05 mm |
Axes (DoF) | 6 |
Controller | FANUC R-30iB Plus series |
Interfaces | EtherNet/IP; PROFINET; EtherCAT; DeviceNet; CC-Link; CC-Link IE Field; PROFIBUS; FL-net; Modbus; OPC UA |
Certifications | ISO 10218-1; IP67; PL e, Cat. 4, SIL 3 emergency stop function; PL d, Cat. 3, SIL 2 position/speed check function |
Price | From USD 58,400 |
Prices are indicative, are not final and may change.
Applications
Collaborative handling
Machine tending
Palletizing
Assembly
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
6 controlled axes
Max. wrist payload 25 kg
Horizontal reach 1889 mm
Repeatability ±0.05 mm
Mass 135 kg
Installation floor, upside-down or at an angle
Controller R-30iB Plus series
FANUC CRX-25iA Review Summary
The FANUC CRX-25iA is a 6-axis collaborative robot with a 25 kg payload, an 1889 mm reach and a repeatability of ±0.05 mm. It is designed for heavier collaborative work such as handling, assembly, palletizing and arc welding. The arm weighs 135 kg and can be mounted on the floor, upside-down or at an angle. It is listed from USD 58,400. The CRX-25iA is no longer part of the current FANUC product range.
Pros
25 kg maximum payload with a 1889 mm reach
±0.05 mm repeatability
Several installation options: floor, upside-down or at an angle
Collaborative design for work near people, subject to a risk assessment
Wide choice of industrial fieldbus interfaces
Cons
No longer part of the current FANUC product range
The 25 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The FANUC CRX-25iA fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment. For a new project, ask FANUC for the current equivalent.
Full review: FANUC CRX-25iA Review: Specs, Price and Applications of the 25 kg Collaborative Robot
