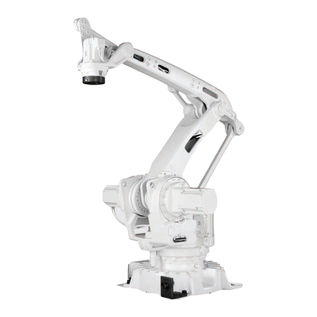

ABB Robotics IRB 460 Overview

The ABB IRB 460 is a four-axis palletizing robot with a 110 kg payload, a 2400 mm reach and a position repeatability of ±0.20 mm. It is a compact, fast palletizer for end-of-line and bag palletizing. The robot is floor mounted, is rated IP67 and runs on the IRC5 or OmniCore controller.

Key Specifications

Prices are indicative, are not final and may change.

Applications

• Material handling

• Machine tending

• Assembly

• Packaging

• Inspection

• Dispensing

Industries

Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics

Technical Details

• 4 axes

• Max. payload 110 kg

• Reach 2400 mm

• Repeatability ±0.20 mm

• Mounting floor

• Protection IP67

• Controller IRC5 or OmniCore V250XT / V400XT

ABB Robotics IRB 460 Review Summary

The IRB 460 is a compact, fast four-axis palletizing robot with a 110 kg payload, a 2400 mm reach and ±0.20 mm repeatability. It is built for end-of-line and bag palletizing, and is listed from USD 65,000.

Pros

• 110 kg payload

• Compact and fast for end-of-line cells

• IP67 protection

• Runs on IRC5 or OmniCore

Cons

• ±0.20 mm repeatability

• 2400 mm reach is shorter than the IRB 660 and IRB 760

• Four axes cannot tilt products

Who It Is For

The IRB 460 fits food, beverage, consumer goods and bulk material producers that need a compact palletizer at the end of one or two lines. For more reach or payload, look at the IRB 660.
