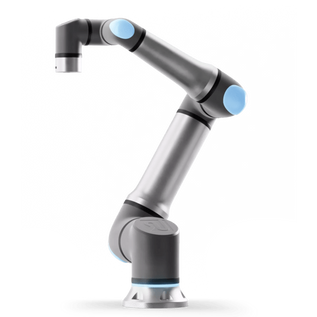

Universal Robots UR30 Overview
The Universal Robots UR30 is a 6-axis collaborative robot with a payload of 30 kg, extendable to 35 kg, and a reach of 1300 mm, repeatable to ±0.1 mm. It weighs 63.5 kg on a Ø245 mm footprint and reaches a maximum TCP speed of 4 m/s. The IP65-rated arm is built for heavy machine tending, material handling, palletizing of heavy products and high-torque screwdriving.
Key Specifications
Specification | Universal Robots UR30 |
Manufacturer | Universal Robots |
Model | UR30 |
Category | Robot arm / Collaborative robot |
Payload | 30 kg |
Reach | 1300 mm |
Repeatability | ±0.1 mm |
Speed | 4 m/s maximum TCP speed |
Axes (DoF) | 6 |
Controller | UR control box CB 5.5 / CB 5.6 (OEM versions available) with PolyScope software |
Interfaces | Modbus TCP (client/server); EtherNet/IP adapter; PROFINET device; PROFIsafe; ROS/ROS2; 16 digital inputs; 16 digital outputs; 2 analog inputs; 2 analog outputs; 4 quadrature digital inputs; tool flange with 2 digital inputs, 2 digital outputs and 2 analog inputs or RS-485 |
Certifications | EN ISO 13849-1 (PLd, Category 3); EN ISO 10218-1; UL 1740 |
Price | From USD 59,600 |
Prices are indicative, are not final and may change.
Applications
Machine tending
Welding
Palletizing
Screwdriving
Inspection
Dispensing
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
6 rotating joints
Extended payload 35 kg within defined boundary conditions
Joint speeds 120°/s (base, shoulder), 150°/s (elbow) and 210°/s (wrists)
Arm weight 63.5 kg
Footprint Ø245 mm
IP65
ISO 14644-1 Class 4 cleanroom
Power consumption 300 W moderate, 750 W maximum
Built-in force/torque sensor ±200 N / ±20 Nm
Tool flange ISO 9409-1-50-4-M6
Universal Robots UR30 Review Summary
The UR30 is the highest-payload cobot in the Universal Robots range. It carries 30 kg, extendable to 35 kg within defined boundary conditions, across a 1300 mm reach at up to 4 m/s TCP speed, in an IP65-rated arm. It is built for heavy machine tending, material handling, palletizing of heavy products and high-torque screwdriving, and is listed from USD 59,600.
Pros
30 kg payload, extendable to 35 kg
63.5 kg arm weight, lighter than the FAIRINO FR30
IP65 and ISO Class 4 cleanroom rating
4 m/s maximum TCP speed
UL 1740 certification
Cons
Repeatability of ±0.1 mm
1300 mm reach is shorter than the 1403 mm of the FAIRINO FR30
Starting price of USD 59,600 is more than three times that of the FAIRINO FR30
Who It Is For
The UR30 fits plants that need to automate heavy lifting in a compact cell and want IP65 protection and the UR software ecosystem. Buyers focused on price should compare it with the FAIRINO FR30; if you need reach more than payload, look at the UR20.
