Omron LD-250 Overview

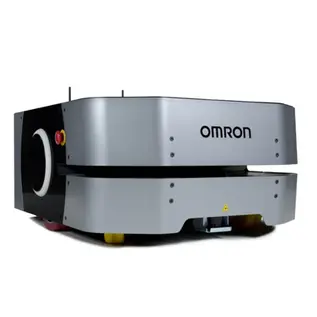

The Omron LD-250 is an autonomous mobile robot with a maximum payload of 250 kg and a top speed of 1.2 m/s. It navigates without floor magnets, tape or external markers, using safety-rated lasers and time-of-flight sensors to detect obstacles. The 148 kg platform runs for about 13 hours without payload and 10 hours at full payload, and recharges from 20% to 80% in 2 hours 10 minutes. Typical uses include transport of bulky parts, cart and conveyor-top applications and line-side delivery in manufacturing and warehousing.
Key Specifications
Specification | Omron LD-250 |
Manufacturer | Omron |
Model | LD-250 |
Category | Mobile robot / AMR/AGV |
Payload | 250 kg |
Speed | 1.2 m/s |
Interfaces | Wi-Fi IEEE 802.11 a/b/g; 1 x Ethernet (shielded, Auto-MDIX); 2 x serial; 16 digital inputs / 16 digital outputs; digital audio in/out; auxiliary power 5, 12, 20 VDC and 22-30 VDC; MobilePlanner; FLOW Core fleet management with MES, ERP and WMS integration |
Certifications | cULus; UL 3100; EN ISO 12100; EN ISO 13849-1; EN 60204-1; ANSI B56.5; EN ISO 3691-4; EN 61000-6-2; EN 61000-6-4; battery UN 38.3 and ANSI/CAN/UL/ULC 2271; cleanroom ISO 5 / Class 100 |
Price | From USD 45,000 |
Prices are indicative, are not final and may change.
Applications
Intralogistics
Line-side delivery
Pallet movement
Cart towing
Warehouse transport
Industries
Warehousing · Manufacturing · Automotive · Electronics · Logistics · Retail fulfillment · Healthcare
Technical Details
Weight: 148 kg with battery. Maximum rotation speed: 120°/s. Battery: LiFePO4, 25.6 VDC nominal, 72 Ah. Run time: 13 h without payload, 10 h at full payload. Recharge: 2 h 10 min (20% to 80%). Navigation: autonomous map-based navigation with a front safety scanning laser (240° field of view), low front laser and rear time-of-flight sensors
Optional side lasers. Stop accuracy: ±75 mm to a position, ±25 mm at a standard target, ±8 mm with CAPS or HAPS. Maximum slope: 1.7° (3%). Maximum step: 10 mm. Protection: IP20
Omron LD-250 Review Summary
The Omron LD-250 is an autonomous mobile robot with a maximum payload of 250 kg and a top speed of 1.2 m/s. It navigates without floor magnets, tape or external markers, using safety-rated lasers and time-of-flight sensors to detect obstacles. The 148 kg platform runs for about 13 hours without payload and 10 hours at full payload, and recharges from 20% to 80% in 2 hours 10 minutes. Typical uses include transport of bulky parts, cart and conveyor-top applications and line-side delivery in manufacturing and warehousing. It is listed from USD 45,000.
Pros
Maximum payload of 250 kg
Speed: 1.2 m/s
Wide choice of communication interfaces
Cons
Needs clear, level floor routes
Software, installation and integration are quoted separately
Who It Is For
The Omron LD-250 fits plants and warehouses that need to move loads between stations without fixed conveyors.
Full review: Omron LD-250 Review: Specs, Price and Applications of the 250 kg Mobile Robot
