JAKA Robotics JAKA Zu 3 Overview

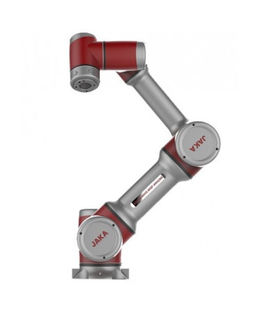

The JAKA Zu 3 is a 6-axis collaborative robot with a 3 kg payload, a 626 mm working radius and ±0.02 mm repeatability. It is the smallest arm of the Zu series and is designed for light, precise tasks in confined spaces, such as small-part assembly, screwdriving and dispensing. The arm weighs 12 kg, reaches a maximum TCP speed of 1.5 m/s and is rated IP54. It can be mounted at any angle and runs on the JAKA StandardCab control cabinet.
Key Specifications
Specification | JAKA Robotics JAKA Zu 3 |
Manufacturer | JAKA Robotics |
Model | JAKA Zu 3 |
Category | Robot arm / Collaborative robot |
Payload | 3 kg |
Reach | 626 mm |
Repeatability | ±0.02 mm |
Speed | 1.5 m/s |
Axes (DoF) | 6 |
Controller | JAKA StandardCab control cabinet |
Interfaces | TCP/IP; Modbus TCP; Modbus RTU; PROFINET; EtherNet/IP; 16 digital inputs; 16 digital outputs; 2 analog inputs or outputs |
Price | From USD 15,000 |
Prices are indicative, are not final and may change.
Applications
Machine tending
Packaging
Inspection
Assembly
Dispensing
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
6 axes
Payload 3 kg
Working radius 626 mm
Repeatability ±0.02 mm
Weight 12 kg
Max. TCP speed 1.5 m/s
IP54
Mounting any angle
Control cabinet IP44, 16 DI / 16 DO
JAKA Robotics JAKA Zu 3 Review Summary
The JAKA Zu 3 is a 6-axis collaborative robot with a 3 kg payload, a 626 mm working radius and ±0.02 mm repeatability. It is the smallest arm of the Zu series and is designed for light, precise tasks in confined spaces, such as small-part assembly, screwdriving and dispensing. The arm weighs 12 kg, reaches a maximum TCP speed of 1.5 m/s and is rated IP54. It can be mounted at any angle and runs on the JAKA StandardCab control cabinet. It is listed from USD 15,000.
Pros
3 kg maximum payload with a 626 mm reach
±0.02 mm repeatability
Speed: 1.5 m/s
Collaborative design for work near people, subject to a risk assessment
Wide choice of communication interfaces
Graphical programming environment
Cons
The 3 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The JAKA Zu 3 fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
