JAKA Robotics JAKA Zu 12 Overview

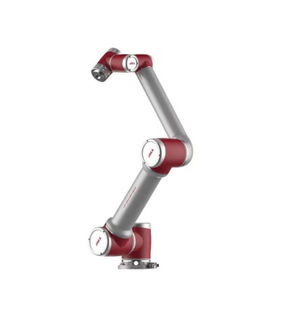

The JAKA Zu 12 is a 6-axis collaborative robot with a 12 kg payload, a 1327 mm working radius and ±0.03 mm repeatability. Its long reach and medium payload are designed for palletizing, machine tending and handling tasks that span larger work areas. The arm weighs 41 kg, reaches a maximum TCP speed of 3 m/s and is rated IP54. It can be mounted at any angle and runs on the JAKA StandardCab control cabinet.

Key Specifications

Prices are indicative, are not final and may change.

Applications

• Machine tending

• Packaging

• Inspection

• Assembly

• Dispensing

Industries

Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics

Technical Details

• 6 axes

• Payload 12 kg

• Working radius 1327 mm

• Repeatability ±0.03 mm

• Weight 41 kg

• Max. TCP speed 3 m/s

• IP54

• Mounting any angle

• Control cabinet IP44, 16 DI / 16 DO

JAKA Robotics JAKA Zu 12 Review Summary

The JAKA Zu 12 is a 6-axis collaborative robot with a 12 kg payload, a 1327 mm working radius and ±0.03 mm repeatability. Its long reach and medium payload are designed for palletizing, machine tending and handling tasks that span larger work areas. The arm weighs 41 kg, reaches a maximum TCP speed of 3 m/s and is rated IP54. It can be mounted at any angle and runs on the JAKA StandardCab control cabinet. It is listed from USD 28,000.

Pros

• 12 kg maximum payload with a 1327 mm reach

• ±0.03 mm repeatability

• Speed: 3 m/s

• Collaborative design for work near people, subject to a risk assessment

• Wide choice of communication interfaces

• Graphical programming environment

Cons

• The 12 kg maximum payload includes the end effector

• End effectors, safety equipment and integration are quoted separately

Who It Is For

The JAKA Zu 12 fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
