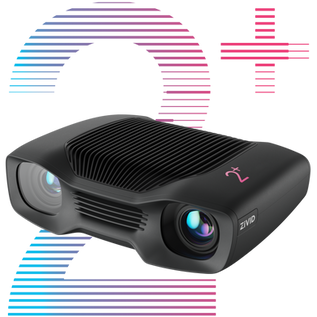

Zivid 2+ Overview
The Zivid 2+ is a 3D colour camera for robot guidance with 5 MP resolution, capture times from 100 ms, a 900 lumen projector, a 10 GigE interface and a weight of 1 kg.
Key Specifications
Specification | Zivid 2+ |
Manufacturer | Zivid |
Model | Zivid 2+ |
Category | Vision & sensors / 3D colour camera |
Models | M60, M130 and L110 |
2D image | 5 MP colour, 2448 × 2048 |
3D output | High-definition point cloud with colour |
Acquisition time | 100 ms to 1 s |
Dynamic range | 60 dB at 100 ms; up to 82 dB in a single capture |
Projector | 900 lumen |
Interface | 10 Gigabit Ethernet |
Size | 169 × 124 × 56 mm |
Weight | 1000 g |
Robustness | Tested to 15 G shock and 5 G vibration |
Price | Price on request |
Price available on request. Any price is indicative, not final and may change.
Zivid 2+ Review Summary
The Zivid 2+ produces a point cloud in which every point also has a colour, at 5 MP. That combination helps a robot recognize and grasp objects that are shiny, transparent or tightly packed, which are the hard cases in picking. Captures take 0.1 to 1 second depending on settings, the housing weighs 1 kg and is tested for shock and vibration, so the camera can ride on a robot arm. The family includes the M60, M130 and L110 models for different working distances. Price is available on request.
Pros
Colour and 3D from one 5 MP sensor
Captures from 100 ms
High dynamic range for shiny and transparent objects
1 kg, shock and vibration tested
10 GigE interface
Cons
Structured light works on static scenes, not on moving objects
Per-model working distance and precision need the data sheet
Who It Is For
The Zivid 2+ fits integrators and robot makers building picking and assembly cells for difficult objects.
