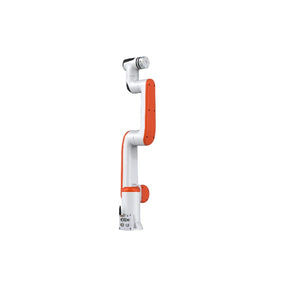

RealMan Robotics ECO65-B Overview
The RealMan ECO65-B is the standard version of the ECO65, a 6-axis lightweight collaborative arm that carries 5 kg over a 610 mm working radius. Repeatability is ±0.05 mm and the tool centre point moves at up to 1.8 m/s. Weighing 7.8 kg, the arm runs from a 24 V DC supply with a typical draw of 150 W, which makes it practical for mobile and battery-powered platforms. All six joints are fitted with mechanical brakes, and the controller sits inside the 107 mm base.
Key Specifications
Specification | RealMan Robotics ECO65-B |
Manufacturer | RealMan Robotics |
Model | ECO65-B |
Category | Robot arm / Collaborative robot |
Payload | 5 kg |
Reach | 610 mm |
Repeatability | ±0.05 mm |
Speed | TCP up to 1.8 m/s; joints 1-2: 180°/s; joints 3-6: 225°/s |
Axes (DoF) | 6 |
Controller | Integrated in the robot base |
Interfaces | Gigabit Ethernet; WiFi; Bluetooth; 2 x USB; RS485; CAN FD; 4 digital inputs / 4 digital outputs at the base; RS485 and 2 digital inputs / 2 digital outputs at the tool flange |
Price | From USD 11,110 |
Prices are indicative, are not final and may change.
Applications
Machine tending
Assembly
Inspection
Education
Research
Packaging
Dispensing
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
Weight: 7.8 kg. Base diameter: 107 mm. Power supply: 24 V DC. Typical power: 150 W. Joint brakes: mechanical on all six joints. Operating temperature: 0 to 45 °C. Materials: aluminum alloy and ABS
RealMan Robotics ECO65-B Review Summary
The RealMan ECO65-B is the standard version of the ECO65, a 6-axis lightweight collaborative arm that carries 5 kg over a 610 mm working radius. Repeatability is ±0.05 mm and the tool centre point moves at up to 1.8 m/s. Weighing 7.8 kg, the arm runs from a 24 V DC supply with a typical draw of 150 W, which makes it practical for mobile and battery-powered platforms. All six joints are fitted with mechanical brakes, and the controller sits inside the 107 mm base. It is listed from USD 11,110.
Pros
5 kg maximum payload with a 610 mm reach
±0.05 mm repeatability
Speed: TCP up to 1.8 m/s; joints 1-2: 180°/s; joints 3-6: 225°/s
Collaborative design for work near people, subject to a risk assessment
Wide choice of communication interfaces
Cons
The 5 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The RealMan ECO65-B fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
Full review: RealMan ECO65-B Review: Specs, Price and Applications of the 5 kg Collaborative Robot
