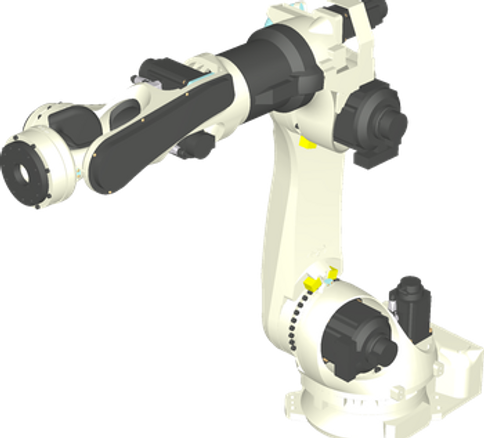

Kawasaki Robotics BX100N Overview

The Kawasaki BX100N is a 6-axis industrial robot with a 100 kg payload, a reach of 2200 mm and a positional repeatability of ±0.06 mm. It is a heavy-duty robot built for spot welding and general material handling, with a hollow wrist that routes cables and hoses inside the arm. The robot weighs 740 kg, is floor-mounted and runs on the Kawasaki F02 controller.

Key Specifications

Prices are indicative, are not final and may change.

Applications

• Material handling

• Machine tending

• Assembly

• Packaging

• Inspection

• Dispensing

Industries

Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics

Technical Details

• 6 axes

• Max. payload 100 kg

• Reach 2200 mm

• Repeatability ±0.06 mm

• Mass 740 kg

• Mounting floor

• Controller F02

Kawasaki Robotics BX100N Review Summary

The Kawasaki BX100N is a 6-axis industrial robot with a 100 kg payload, a reach of 2200 mm and a positional repeatability of ±0.06 mm. It is a heavy-duty robot built for spot welding and general material handling, with a hollow wrist that routes cables and hoses inside the arm. The robot weighs 740 kg, is floor-mounted and runs on the Kawasaki F02 controller. It is listed from USD 57,500.

Pros

• 100 kg maximum payload with a 2200 mm reach

• ±0.06 mm repeatability

• Wide choice of industrial fieldbus interfaces

Cons

• Needs safety fencing or equivalent safeguarding

• The 100 kg maximum payload includes the end effector

• End effectors, safety equipment and integration are quoted separately

Who It Is For

The Kawasaki BX100N fits manufacturers that need an industrial robot of this size for handling, machine tending and assembly.

Full review: Kawasaki BX100N Review: Specs, Price and Applications of the 100 kg Industrial Robot
