Elite Robots CS620 Overview

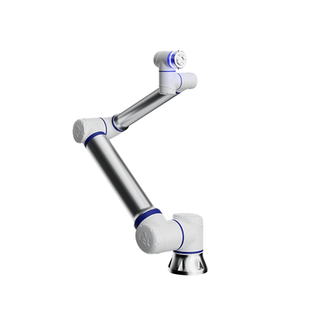

The Elite Robots CS620 is a 6-axis collaborative robot with a 20 kg payload, an 1800 mm reach and a repeatability of ±0.1 mm. It is designed for palletizing, heavy machine tending and long-reach material handling, with a maximum TCP speed of 3.9 m/s. The arm weighs 60 kg, has a Ø 240 mm footprint and is rated IP65, with IP68 as an option. It runs from a standard AC control cabinet rated IP44 or a compact OEM DC/AC controller, and communicates over Ethernet TCP/IP, Modbus TCP/RTU, EtherNet/IP and PROFINET; a second 24 V, 5 A tool connector powers larger end effectors.
Key Specifications
Specification | Elite Robots CS620 |
Manufacturer | Elite Robots |
Model | CS620 |
Category | Robot arm / Collaborative robot |
Payload | 20 kg |
Reach | 1800 mm |
Repeatability | ±0.1 mm |
Speed | 3.9 m/s |
Axes (DoF) | 6 |
Controller | Standard AC control cabinet, 505 × 257 × 462 mm, 16 kg, IP44; OEM DC/AC controller optional |
Interfaces | Ethernet TCP/IP; Modbus TCP/RTU; EtherNet/IP slave; PROFINET slave; RS485; 24 digital inputs; 24 digital outputs; 2 analog inputs; 2 analog outputs; tool flange RS485 with 4 digital inputs, 4 digital outputs, 1 analog input, 1 analog output |
Certifications | CE; UL; KCs; RoHS; ISO 10218; ISO 13849; SEMI S2; ISO 14644 cleanroom class 5 |
Price | From USD 35,900 |
Prices are indicative, are not final and may change.
Applications
Machine tending
Palletizing
Inspection
Dispensing
Assembly
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
6 axes
Payload 20 kg
Reach 1800 mm
Repeatability ±0.1 mm
Max. TCP speed 3.9 m/s
Joint speeds 125°/s (J1–J2), 150°/s (J3), 210°/s (J4–J6)
Weight 60 kg
Footprint Ø 240 mm
IP65, IP68 optional
Typical power 625 W
Operating temperature -10 to 50 °C
Second tool connector 24 V, 5 A
Elite Robots CS620 Review Summary
The Elite Robots CS620 is a 6-axis collaborative robot with a 20 kg payload, an 1800 mm reach and a repeatability of ±0.1 mm. It is designed for palletizing, heavy machine tending and long-reach material handling, with a maximum TCP speed of 3.9 m/s. The arm weighs 60 kg, has a Ø 240 mm footprint and is rated IP65, with IP68 as an option. It runs from a standard AC control cabinet rated IP44 or a compact OEM DC/AC controller, and communicates over Ethernet TCP/IP, Modbus TCP/RTU, EtherNet/IP and PROFINET; a second 24 V, 5 A tool connector powers larger end effectors. It is listed from USD 35,900.
Pros
20 kg maximum payload with a 1800 mm reach
Speed: 3.9 m/s
Collaborative design for work near people, subject to a risk assessment
Wide choice of communication interfaces
Cons
Repeatability of ±0.1 mm is wider than on smaller precision robots
The 20 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The Elite Robots CS620 fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
