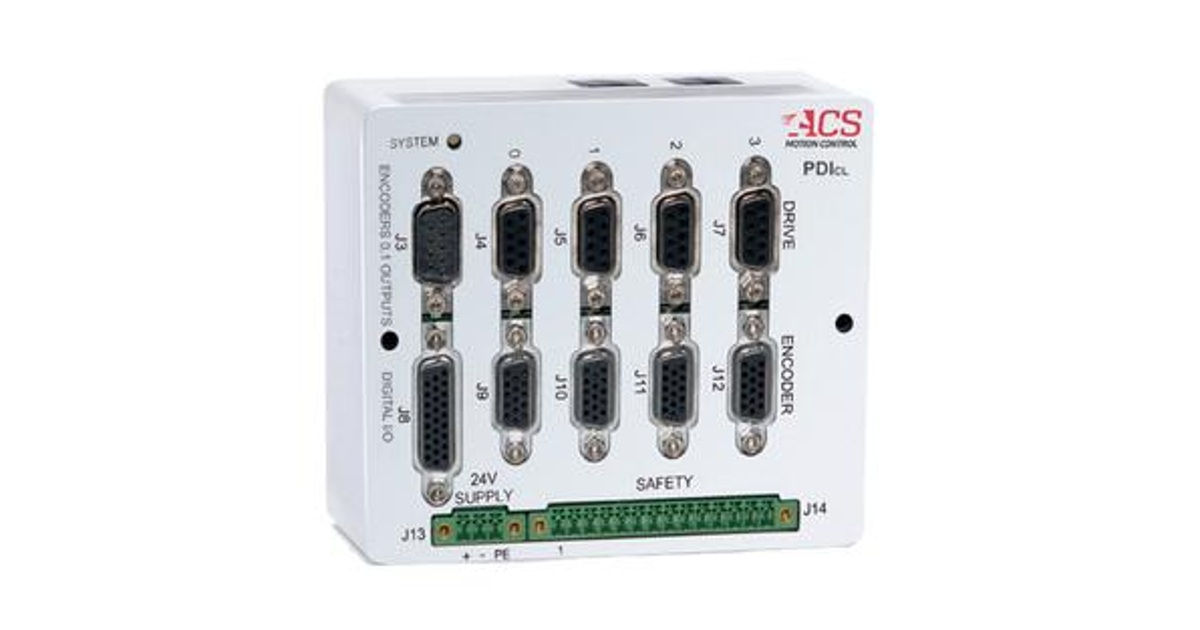

ACS PDIcl connects third-party pulse/direction stepper or servo drives to an ACS SPiiPlus EtherCAT control system. It produces position commands and accepts configured encoder feedback for verification or closed-loop operation. It is an interface module, so external drives still supply motor power and perform their assigned drive functions.
Review Summary
Consider PDIcl when a machine needs to retain suitable pulse/direction drives while adding them to an ACS motion architecture with feedback. Its distinction from the open-loop PDMnt is the feedback path. Confirm the absolute-encoder channel count on the exact order: the current product-page summary and the linked datasheet do not describe that maximum identically.
Role EtherCAT interface to external pulse/direction drives Command axes 2 or 4 Command electrical interface RS-422 pulse/direction Command pulse rate Up to 4 million pulses/second Programmable command pulse width 80 ns to 80 microseconds; timing must suit the selected rate Feedback scope Incremental digital feedback and optional absolute interfaces; exact count/protocol require ordering confirmation Control supply 24 Vdc ±10%; datasheet states input current below 0.7 A including four encoders Enclosure 121 × 100 × 48 mm; panel or DIN-rail mounting Price Request a quote for axes, feedback, I/O and mounting options Applications and Industries
Precision OEM multi-axis equipment using the ACS SPiiPlus control platform
Industrial automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Role | EtherCAT interface to external pulse/direction drives |
| Command axes | 2 or 4 |
| Command electrical interface | RS-422 pulse/direction |
| Command pulse rate | Up to 4 million pulses/second |
| Programmable command pulse width | 80 ns to 80 microseconds; timing must suit the selected rate |
| Feedback scope | Incremental digital feedback and optional absolute interfaces; exact count/protocol require ordering confirmation |
| Control supply | 24 Vdc ±10%; datasheet states input current below 0.7 A including four encoders |
| Enclosure | 121 × 100 × 48 mm; panel or DIN-rail mounting |
| Price | Request a quote for axes, feedback, I/O and mounting options |
