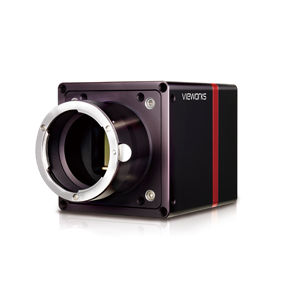

Vieworks VN Pixel Shift Overview
Vieworks VN Pixel Shift supplies a documented pixel shifted reconstruction configuration. This source-based review distinguishes the model, acquisition and practical system scope without claiming hands-on testing.
Key Specifications
Product detail | Specification |
Product | Vieworks VN Pixel Shift |
Image format | Reconstructed multi-exposure image; model-specific native grid |
Acquisition | Model-Specific Acquisition |
Interface | CoaXPress for documented VN-25MX; other models require exact interface |
Capture rate | Catalog VN-25MX: 100 MP reconstructed output at up to 18 fps |
Catalog example | VN-29MC reconstructed image up to 260 MP |
Scene requirement | Stationary target throughout the reconstruction sequence |
Review Summary
VN Pixel Shift merits evaluation when reconstructed multi-exposure image; model-specific native grid and piezoelectric pixel-shifting stage with ccd or cmos branch suit the required evidence. A 100 or 260 MP reconstructed image is not a single sensor with that many independently exposed native sites. VN-29MC and VN-25MX are different branches; the 18 fps example must not be assigned to the whole family. Select the complete ordering code rather than assigning one family maximum to every variant. The useful outcome is a reproducible image and accepted interpretation delivered at the required time.
Integration and Selection
Budget the entire sub-exposure and reconstruction sequence, receiving and accepted output. Qualify the quoted reconstructed mode and native mode separately. A moving conveyor requires an explicitly supported acquisition geometry rather than assuming ordinary snapshot behavior. Catalog VN-25MX: 100 MP reconstructed output at up to 18 fps is the identified rate scope.
Price: Request a quote.
