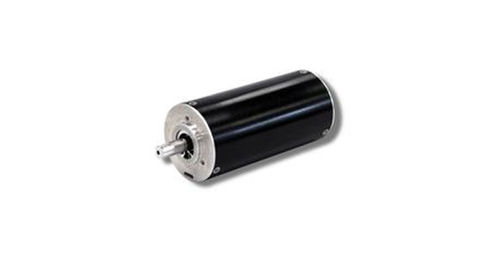

SMAC HT35 Brushless Torque Motors
SMAC HT35 is a 35 mm brushless motor whose supplied specification separates 0.121 Nm rated torque at 0.9 A from 0.556 Nm peak torque at 48 VDC and 4 A. The listed rated speed is 2,035 rpm, while 2,570 rpm is a no-load speed. Encoder and gearbox choices are additional configuration items.
Key Specifications
Specification | Details |
Model | HT35 |
Diameter | 35 mm |
Rated torque | 0.121 Nm at 0.9 A |
Peak torque | 0.556 Nm at 48 VDC, 4 A |
Rated speed | 2,035 rpm |
No-load speed | 2,570 rpm |
Feedback choices listed | 2K or 24K encoder configurations |
Gear options listed | 4:1 or 16:1; other ratios by request |
Engineering Assessment
A useful compact-motor candidate when the rated point fits the load and the selected feedback supports the control requirement. Keep the no-load, rated and peak values separate during comparison.
Applications
Small rotary mechanisms requiring a configured brushless motor and optional feedback or gearing.
Industries: Manufacturing and automation
Price and Configuration
Request a quotation for the selected model, options, integration requirements and delivery schedule.
