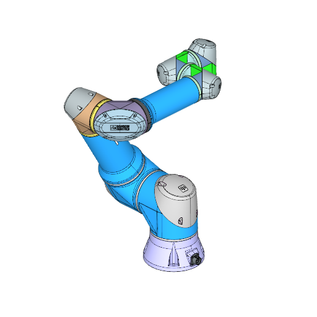

Rainbow Robotics RB16-900 Overview
The Rainbow Robotics RB16-900 is a 6-axis collaborative robot with a payload of 16 kg, a reach of 900 mm and a repeatability of ±0.05 mm. The arm weighs 35.5 kg, has a Ø196 mm base footprint and can be mounted in any orientation. Its high payload in a short-reach arm suits handling of heavier parts, machine tending and assembly in compact cells. The RB series is CE, KC and TÜV SÜD certified and designed for collaborative operation per ISO/TS 15066.
Key Specifications
Specification | Rainbow Robotics RB16-900 |
Manufacturer | Rainbow Robotics |
Model | RB16-900 |
Category | Robot arm / Collaborative robot |
Payload | 16 kg |
Reach | 900 mm |
Repeatability | ±0.05 mm |
Speed | TCP 1 m/s; joint speeds: J1 and J2 120°/s, J3 to J6 180°/s |
Axes (DoF) | 6 |
Controller | Rainbow Robotics CB06 standard robot control box |
Interfaces | Ethernet (TCP/IP, Modbus TCP), EtherNet/IP, PROFINET, OPC UA, digital and analog I/O |
Certifications | CE, KC, TÜV SÜD certified; collaborative operation per ISO/TS 15066 |
Price | From USD 41,000 |
Prices are indicative, are not final and may change.
Applications
Machine tending
Assembly
Inspection
Education
Research
Packaging
Dispensing
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
Weight: 35.5 kg
Base footprint: Ø196 mm
Mounting: any orientation
Axes: 6
Rainbow Robotics RB16-900 Review Summary
The Rainbow Robotics RB16-900 is a 6-axis collaborative robot with a payload of 16 kg, a reach of 900 mm and a repeatability of ±0.05 mm. The arm weighs 35.5 kg, has a Ø196 mm base footprint and can be mounted in any orientation. Its high payload in a short-reach arm suits handling of heavier parts, machine tending and assembly in compact cells. The RB series is CE, KC and TÜV SÜD certified and designed for collaborative operation per ISO/TS 15066. It is listed from USD 41,000.
Pros
16 kg maximum payload with a 900 mm reach
±0.05 mm repeatability
Speed: TCP 1 m/s; joint speeds: J1 and J2 120°/s, J3 to J6 180°/s
Collaborative design for work near people, subject to a risk assessment
Cons
The 16 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The Rainbow Robotics RB16-900 fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
Full review: Rainbow Robotics RB16-900 Review: Specs, Price and Applications of the 16 kg Collaborative Robot
