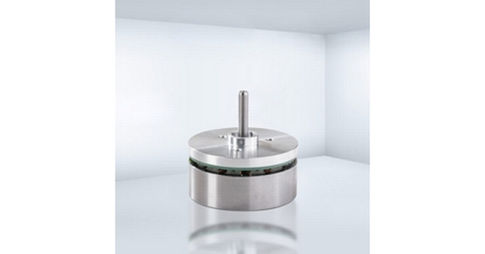

Pelonis FLAT MOTION EC45 BLDC Motor
The Pelonis EC45 is a 45 mm external-rotor BLDC motor with a listed 24 V supply and configuration-dependent power from 30 to 70 W. It sits between the smaller EC32 and larger EC60 FLAT MOTION formats.
Key Specifications
Motor architecture | External-rotor BLDC |
Frame class | 45 mm |
Listed voltage | 24 V |
Listed speed | 6,110–6,710 rpm |
Listed power | 30–70 W |
Listed torque | 50–130 mN·m |
Hall angle | 120 electrical degrees |
Ambient range | −20 to +50 °C |
Applications and Industries
Machine and motion control in automation systems
Industrial automation
Review Summary
A useful shortlist item when compact packaging and more power than the EC32 class are required. Match speed, torque and thermal behavior for the exact winding rather than combining range endpoints.
Price and Configuration
Request a quote for the selected configuration,quantity and delivery schedule. Confirm the exact model,options,integration scope and support terms.
