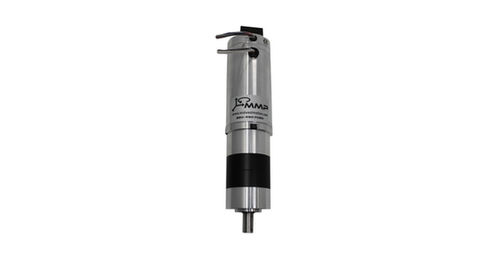

MMP BL58-487C-24V GP52 EU-1024 Gearmotors
Midwest Motion Products BL58-487C-24V GP52 EU-1024 is a 24 V brushless planetary-gearmotor configuration with encoder-equipped variants. The GP52-014 and GP52-068 versions have different loaded output speeds and torque limits, while both datasheets list 17.5 A rated continuous motor current.
Key Specifications
Motor identity | BL58-487C; 24 VDC; brushless |
GP52-014 EU-1024 | Exact ratio 13.73:1; 268 rpm full-load output; 73 in-lb rated continuous; 212 in-lb duty-dependent peak |
GP52-068 EU-1024 | Exact ratio 68.06:1; 54 rpm full-load output; 336 in-lb rated continuous; 443 in-lb duty-dependent peak |
Rated motor current | 17.5 A for both configurations |
Gearhead efficiency: 014 / 068 | 75 / 70 percent, respectively |
Standard backlash: 014 / 068 | 45 / 48 arcmin maximum, respectively |
Total weight: 014 / 068 | 4.35 / 4.85 lb maximum, respectively |
Feedback identity | EU-1024; confirm the exact encoder interface and count convention |
Applications and Industries
Geared rotary mechanisms selected for the documented loaded output point, mounting arrangement and required control behavior.
Industrial automation
Review Summary
Consider this family where a 24 V brushless motor and an identified feedback configuration fit the machine. Choose between the two output points using actual speed, torque, bearing loads and control requirements. The encoder and gearhead do not remove the need for a compatible external controller or a loaded acceptance test.
Price and Configuration
Request a quote for the selected configuration,quantity and delivery schedule. Confirm the exact model,options,integration scope and support terms.
