Mech-Eye PRO S Overview
The Mech-Eye PRO S is an industrial 3D camera with a working distance of 500 to 1000 mm, a resolution of 1920 × 1200 and an accuracy of 0.1 mm at 1 m.
Key Specifications
Specification | Mech-Eye PRO S |
Manufacturer | Mech-Mind Robotics |
Model | PRO S-GL |
Category | Vision & sensors / Industrial 3D camera |
Model | PRO S-GL |
Working distance | 500 to 1000 mm |

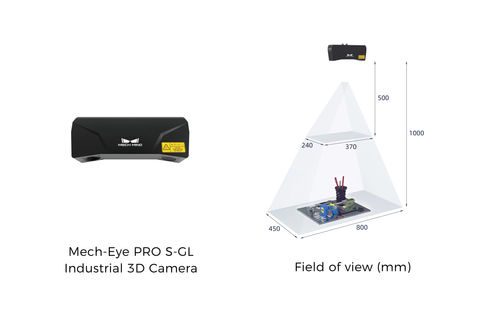

Field of view, near | 370 × 240 mm at 0.5 m |
Field of view, far | 800 × 450 mm at 1.0 m |
Resolution | 1920 × 1200 |
Repeatability in Z | 0.05 mm at 1 m |
Accuracy, VDI/VDE 2634 | 0.1 mm at 1 m |
Capture time | 0.3 to 0.6 s |
Baseline | 180 mm |
Dimensions | 265 × 57 × 100 mm |
Weight | 1.6 kg |
Interface | Gigabit Ethernet |
Price | Price on request |
Price available on request. Any price is indicative, not final and may change.
Mech-Eye PRO S Review Summary
The PRO S is the short-range, high-accuracy model in the Mech-Eye range. With a working distance of half a metre to one metre and an accuracy of 0.1 mm, it suits picking and positioning of small and medium parts at a workstation, where the camera sits close to the scene. It connects over Gigabit Ethernet and captures a scene in 0.3 to 0.6 s. The maker's comparison table does not state a protection rating for this model.
Pros
Accuracy of 0.1 mm at 1 m
Capture in 0.3 to 0.6 s
Accuracy stated to VDI/VDE 2634
Gigabit Ethernet interface
Cons
Fixed working range of 500 to 1000 mm
No protection rating stated in the maker's comparison table
Structured-light capture needs a static scene
Who It Is For
The Mech-Eye PRO S fits integrators building picking and assembly cells for small and medium parts at short range.
Full review: Mech-Eye PRO S Review: Specs and Uses of the Industrial 3D Camera
