Kivnon K10 One-Way Overview

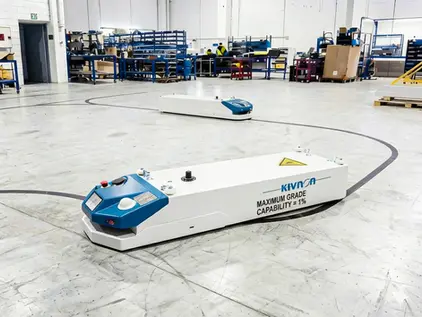

The Kivnon K10 One-Way is a low-profile tow tractor AGV that pulls up to 5000 kg at a maximum speed of 1 m/s. It is designed for towing carts and logistics trains along production lines where space is limited. The vehicle measures 1492 × 460 × 332 mm, follows magnetic guidance and couples to carts with an automatic retractable pin. An inline lithium battery supports opportunity charging through an onboard charging connector. Safety is provided by a safety PLC, a safety scanner and two emergency stop buttons, and the vehicle can be integrated into a fleet management system.
Key Specifications
Specification | Kivnon K10 One-Way |
Manufacturer | Kivnon |
Model | K10 One-Way |
Category | Mobile robot / AMR/AGV |
Payload | up to 5000 kg towing capacity |
Speed | 1 m/s max. speed |
Interfaces | Fleet management system |
Price | From USD 55,000 |
Prices are indicative, are not final and may change.
Applications
Intralogistics
Line-side delivery
Pallet movement
Cart towing
Warehouse transport
Industries
Warehousing · Manufacturing · Automotive · Electronics · Logistics · Retail fulfillment · Healthcare
Technical Details
Towing capacity up to 5000 kg
Max. speed 1 m/s
Magnetic guidance
Dimensions 1492 × 460 × 332 mm
Automatic retractable pin coupling
One-way travel
Inline lithium battery with opportunity charging via onboard charging connector
1 safety PLC, 1 safety scanner and 2 emergency stop buttons
Kivnon K10 One-Way Review Summary
The Kivnon K10 One-Way is a low-profile tow tractor AGV that pulls up to 5000 kg at a maximum speed of 1 m/s. It is designed for towing carts and logistics trains along production lines where space is limited. The vehicle measures 1492 × 460 × 332 mm, follows magnetic guidance and couples to carts with an automatic retractable pin. An inline lithium battery supports opportunity charging through an onboard charging connector. Safety is provided by a safety PLC, a safety scanner and two emergency stop buttons, and the vehicle can be integrated into a fleet management system. It is listed from USD 55,000.
Pros
Maximum payload of up to 5000 kg towing capacity
Speed: 1 m/s max. speed
Cons
Needs clear, level floor routes or a prepared operating area
Fleet software, charging and integration are quoted separately
Who It Is For
The Kivnon K10 One-Way fits plants and warehouses that need to move goods between stations without fixed conveyors.
