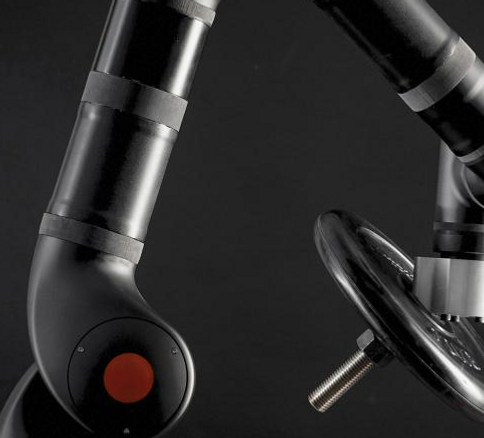

Kassow Robots KR1805 Overview
The Kassow Robots KR1805 is a 7-axis collaborative robot with a payload of 5 kg and a reach of 1800 mm, repeatable to ±0.04 mm. Joint speeds reach 225 deg/s, and the seventh axis lets the arm reach around obstacles and work in confined spaces. The arm mounts on a 160 × 160 mm footprint and is rated IP54. Typical uses include long-reach machine tending, light palletizing, dispensing and inspection of large parts.
Key Specifications
Specification | Kassow Robots KR1805 |
Manufacturer | Kassow Robots |
Model | KR1805 |
Category | Robot arm / Collaborative robot |
Payload | 5 kg |
Reach | 1800 mm |
Repeatability | ±0.04 mm |
Speed | up to 225 deg/s |
Axes (DoF) | 7 |
Interfaces | Modbus; Profinet; ROS1/ROS2; KORD API; TCP/IP; UDP; 16 digital inputs; 8 digital outputs; 4 relay outputs; 2 analogue inputs and 2 analogue outputs (0–10 V and 4–20 mA); two M8 8-pole tool connectors (24 V/3 A); RS485 at the tool flange |
Price | From USD 48,100 |
Prices are indicative, are not final and may change.
Applications
Machine tending
Dispensing
Palletizing
Inspection
Welding
Constrained workspaces
Industries
Automotive · Electronics · Metalworking · Plastics · Food and beverage · Pharmaceuticals · Logistics
Technical Details
Axes: 7. Payload: 5 kg. Reach: 1800 mm. Repeatability: ±0.04 mm. Joint speed: up to 225 deg/s. Joint ranges: J2 and J4 -70°/+180°
J1, J3, J5, J6 and J7 ±360°. Footprint: 160 × 160 mm. Protection class: IP54. Operating temperature: 0–45 °C. Sound level: <65 dB. Body material: aluminium. Power consumption: 400–1200 W. Supply: 100–120 or 200–240 VAC, 50/60 Hz, 16 A
Kassow Robots KR1805 Review Summary
The Kassow Robots KR1805 is a 7-axis collaborative robot with a payload of 5 kg and a reach of 1800 mm, repeatable to ±0.04 mm. Joint speeds reach 225 deg/s, and the seventh axis lets the arm reach around obstacles and work in confined spaces. The arm mounts on a 160 × 160 mm footprint and is rated IP54. Typical uses include long-reach machine tending, light palletizing, dispensing and inspection of large parts. It is listed from USD 48,100.
Pros
5 kg maximum payload with a 1800 mm reach
±0.04 mm repeatability
Speed: up to 225 deg/s
Collaborative design for work near people, subject to a risk assessment
Seventh axis adds flexibility in tight cells
Wide choice of communication interfaces
Cons
The 5 kg maximum payload includes the end effector
End effectors, safety equipment and integration are quoted separately
Who It Is For
The Kassow Robots KR1805 fits manufacturers that want a robot working near people without full fencing, subject to a risk assessment.
Full review: Kassow Robots KR1805 Review: Specs, Price and Applications of the 5 kg Collaborative Robot
