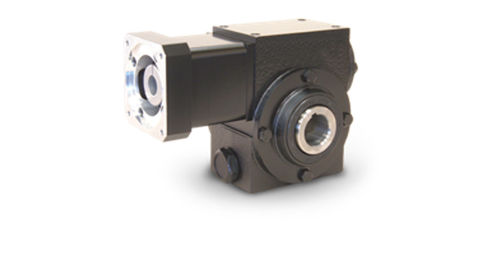

Cone Drive ACCUDRIVE RG Gearheads
Cone Drive ACCUDRIVE RG is a right-angle mechanical servo gearhead using double-enveloping worm gearing. It offers a cast-iron housing and output arrangements intended to accommodate different driven-shaft designs.
Key Specifications
Transmission | Double-enveloping worm gearing |
Housing | Cast iron; universal mounting description |
Listed case sizes | 15, 20, 25, 30 and 35 |
Listed family output ceiling | Up to 880 N·m |
Listed ratios | 5:1 to 60:1; discrete exact ratios |
Outputs | Solid, keyed hollow or shrink-disc hollow shaft |
Backlash choices | Standard and low-backlash options |
Lubrication | Factory-filled synthetic lubricant |
Applications and Industries
Machine and motion control in automation systems
Industrial automation
Review Summary
A candidate when right-angle transmission and shaft flexibility are important. Treat the quoted torque ceiling as a family limit; ratio, case size, duty cycle and mounting arrangement determine the usable rating of an ordered unit.
Price and Configuration
Request a quote for the selected configuration,quantity and delivery schedule. Confirm the exact model,options,integration scope and support terms.
