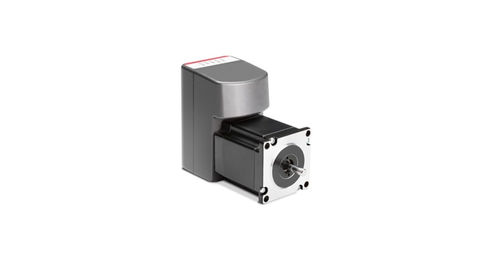

Camozzi DRVI Integrated FOC Motors and Drives
DRVI integrates a motor, absolute single-turn encoder and field-oriented-control drive. Camozzi offers NEMA23/24 stepper configurations and a NEMA24 brushless-DC version. Position and speed functions are available in the selected range, while torque control is specific to the brushless version. The full order code resolves motor, network and optional protective features.
Key Specifications
Motor configurations | NEMA23/24 stepper;NEMA24 brushless DC |
Feedback | Integrated absolute single-turn encoder |
Power / logic supply | 24–48 VDC motor supply;24 VDC logic in documented configuration |
Control modes | Position/speed;torque mode for brushless 24EC |
Networks | Selected PROFINET,CANopen,EtherCAT orEtherNet/IP version |
Options | Holding brake and specified STO arrangement |
Protection | IP65 except shaft;unused connectors capped as required |
Applications and Industries
Compact machine axes using a matched integrated motor, drive and industrial network configuration.
Industrial automation
Review Summary
Consider DRVI when an integrated local drive reduces wiring and the selected motor fits the duty. FOC uses rotor feedback to regulate current, but it does not provide unlimited torque or immunity to a blocked mechanism. Treat the stepper and brushless variants as different configurations with their own curves and temperature limits.
Price and Configuration
Request a quote for the selected configuration,quantity and delivery schedule. Confirm the exact model,options,integration scope and support terms.
