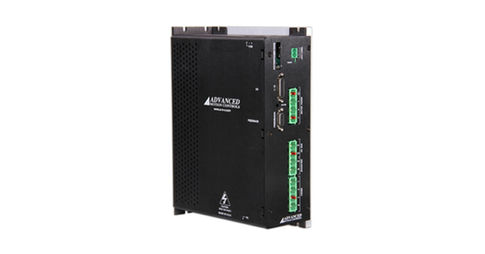

AMC B060A400AC and B100A400AC Servo Drives
ADVANCED Motion Controls B060A400AC and B100A400AC are configurable analog brushless servo drives supplied through Electromate. Their listed continuous currents are 30 A and 50 A, with 60 A and 100 A peak ratings. Both support 200–240 VAC or 255–373 VDC supply arrangements.
Key Specifications
Specification | Details |
Models | B060A400AC and B100A400AC |
Continuous current | 30 A and 50 A respectively |
Peak current | 60 A and 100 A respectively |
Supply | 200–240 VAC or 255–373 VDC |
Power references | Up to 21 kW and 35 kW respectively |
Setup | DIP-switch gain, logic and ramp selections |
Regeneration | Built-in shunt circuitry |
Engineering Assessment
Useful where a centralized controller and hardware-configured amplifier are appropriate. Their built-in shunt arrangement and gain selections should be evaluated against the actual inertial load and regeneration duty.
Applications
Factory automation, positioning, robotics, test systems and metalworking machinery.
Industries: Manufacturing and automation
Price and Configuration
Request a quotation for the selected model, options, integration requirements and delivery schedule.
