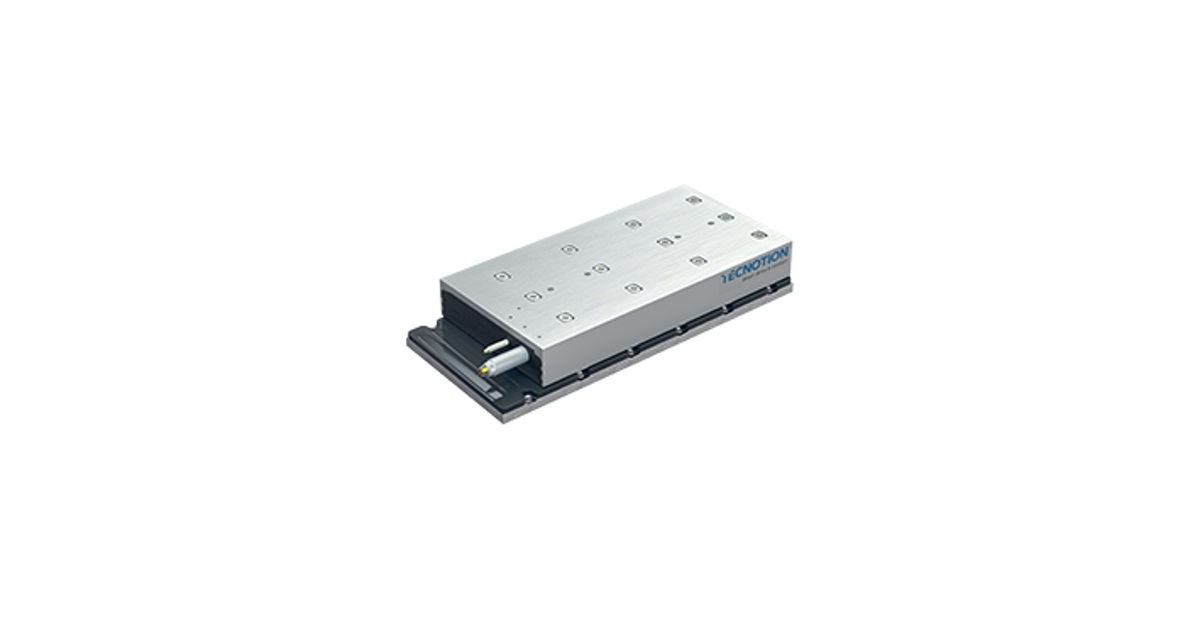

Tecnotion TB Linear Motors
Tecnotion TB Linear Motors
Tecnotion TB is a iron-core linear-motor family. Its current manufacturer table lists 760 – 1900 N continuous force and 1600 – 4000 N peak force across the selected configurations. These are motor-family limits, not a payload or finished-stage accuracy specification.
Review Summary
Consider Tecnotion TB Linear Motors for oEM precision linear-motion axes using a matched TB coil, magnetic track, guidance and controller. Establish the required operating point and installation interfaces before choosing the configuration, and use a representative loaded cycle as the acceptance basis.
Family TB Topology iron-core linear motor Current manufacturer continuous force 760 – 1900 N Current manufacturer peak force 1600 – 4000 N Manufacturer ultimate-force limit 1800 – 4500 N; separate from peak and continuous limits Coil Units TB12 – TB15 – TB18 – TB24 – TB30 Magnet Plates TB192 – TB288 Applications and Industries
OEM precision linear-motion axes using a matched TB coil, magnetic track, guidance and controller.
Manufacturing and automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Family | TB |
| Topology | iron-core linear motor |
| Current manufacturer continuous force | 760 – 1900 N |
| Current manufacturer peak force | 1600 – 4000 N |
| Manufacturer ultimate-force limit | 1800 – 4500 N; separate from peak and continuous limits |
| Coil Units | TB12 – TB15 – TB18 – TB24 – TB30 |
| Magnet Plates | TB192 – TB288 |
