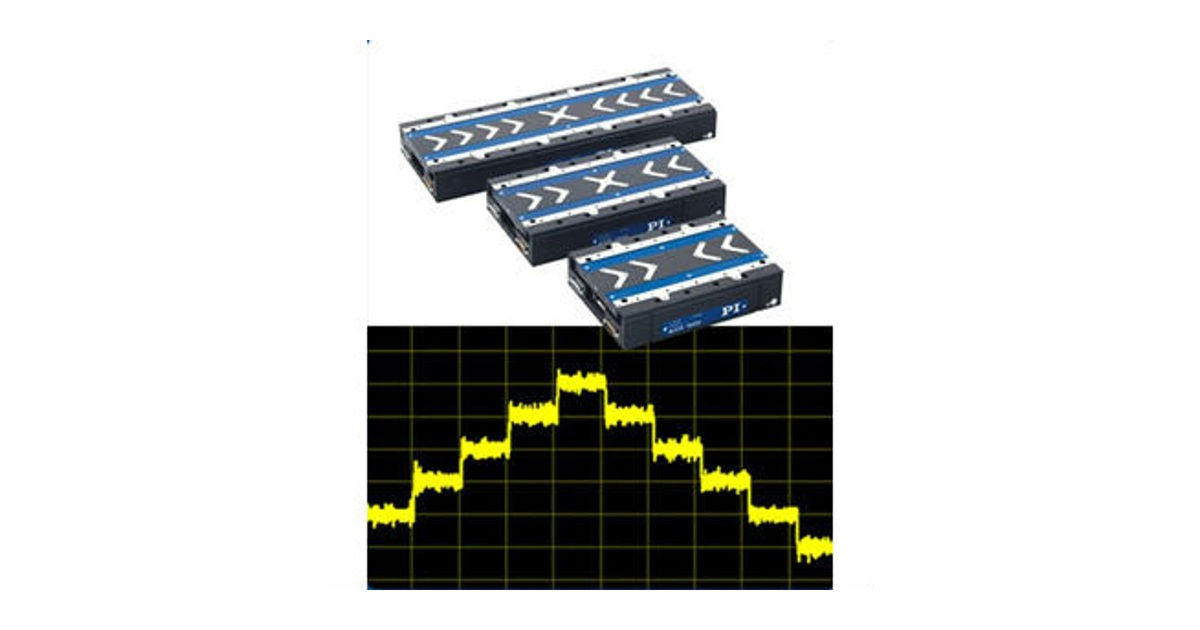

PI V-551 Direct-Drive Linear Stages
PI V-551 Direct-Drive Linear Stages
PI V-551 combines an ironless linear motor with crossed-roller guidance and linear position feedback. The product description lists incremental encoder resolution of 0.2 nm, absolute encoder resolution of 2 nm and minimum incremental platform motion of 0.5 nm under the relevant conditions.
Review Summary
Consider PI V-551 Direct-Drive Linear Stages for optical inspection, metrology, photonics and semiconductor test equipment. Establish the required operating point and installation interfaces before choosing the configuration, and use a representative loaded cycle as the acceptance basis. Resolution is not overall accuracy. Load and environment influence the useful result.
Family V-551 Drive Ironless linear motor Guidance Crossed roller with anti-creep cage assist Guiding reference 1 µm straightness/flatness per 100 mm Incremental encoder resolution 0.2 nm Absolute encoder resolution 2 nm Minimum incremental motion reference 0.5 nm at the platform Applications and Industries
Optical inspection, metrology, photonics and semiconductor test equipment.
Manufacturing and automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Family | V-551 |
| Drive | Ironless linear motor |
| Guidance | Crossed roller with anti-creep cage assist |
| Guiding reference | 1 µm straightness/flatness per 100 mm |
| Incremental encoder resolution | 0.2 nm |
| Absolute encoder resolution | 2 nm |
| Minimum incremental motion reference | 0.5 nm at the platform |
