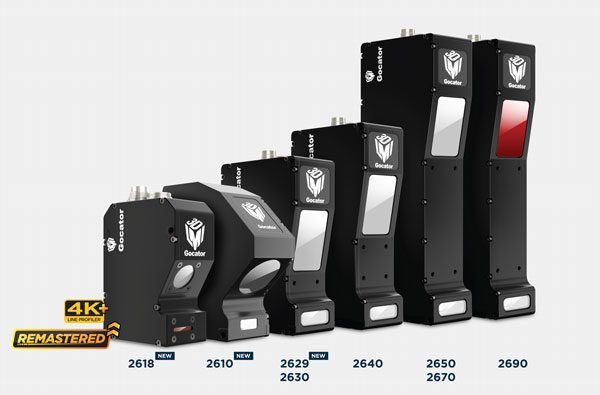

LMI Gocator 2600
The LMI Gocator 2600 series is a family of smart 3D laser line profilers with a 9 megapixel imager, up to 4192 points per profile and scan rates of up to 10,000 Hz.
A laser line profiler measures the shape of a part as it moves under a line of laser light, and the Gocator 2600 series does this at high resolution: each profile contains up to 4192 points. The eight models cover fields of view from about 10 mm to 2 m, so the same family serves tiny electronic parts and large panels. Like other Gocator sensors these are smart sensors, with measurement tools and decision logic inside the device and a browser interface for setup. Blue-laser models suit shiny and dark surfaces.
Pricing is available on request. Any price is indicative only, is not final and may change; contact us for a confirmed quote.
Full review: LMI Gocator 2600 Review: Specs and Uses of the 4K+ 3D Laser Line Profilers
- 2610: Field of view 10.2 to 10.8 mm, Measurement range 5 mm, Resolution X 2.5 µm, Repeatability Z 0.22 µm, Scan rate 1100 to 9000 Hz, Weight 0.9 kg
- 2618: Field of view 20 to 23 mm, Measurement range 12 mm, Resolution X 5.0 to 5.4 µm, Repeatability Z 0.38 µm, Scan rate 700 to 10000 Hz, Weight 0.65 kg
- 2629: Field of view 71 to 93 mm, Measurement range 45 mm, Resolution X 18 to 23 µm, Repeatability Z 0.30 µm, Scan rate 1150 to 9000 Hz, Weight 1.34 kg
- 2630: Field of view 71 to 135 mm, Measurement range 130 mm, Resolution X 18 to 33 µm, Repeatability Z 0.30 µm, Scan rate 600 to 9000 Hz, Weight 1.34 kg
- 2640: Field of view 105 to 198 mm, Measurement range 190 mm, Resolution X 28 to 46 µm, Repeatability Z 1.00 µm, Scan rate 600 to 9000 Hz, Weight 1.48 kg
- 2650: Field of view 190 to 430 mm, Measurement range 475 mm, Resolution X 47 to 104 µm, Repeatability Z 2.70 µm, Scan rate 600 to 9000 Hz, Weight 2.12 kg
- 2670: Field of view 272 to 817 mm, Measurement range 1060 mm, Resolution X 67 to 197 µm, Repeatability Z 10.00 µm, Scan rate 600 to 9000 Hz, Weight 2.12 kg
- 2690: Field of view 385 to 2000 mm, Measurement range 1550 mm, Resolution X 124 to 550 µm, Repeatability Z 12.00 µm, Scan rate 900 to 10000 Hz, Weight 2.12 kg
- Price: Price on request
