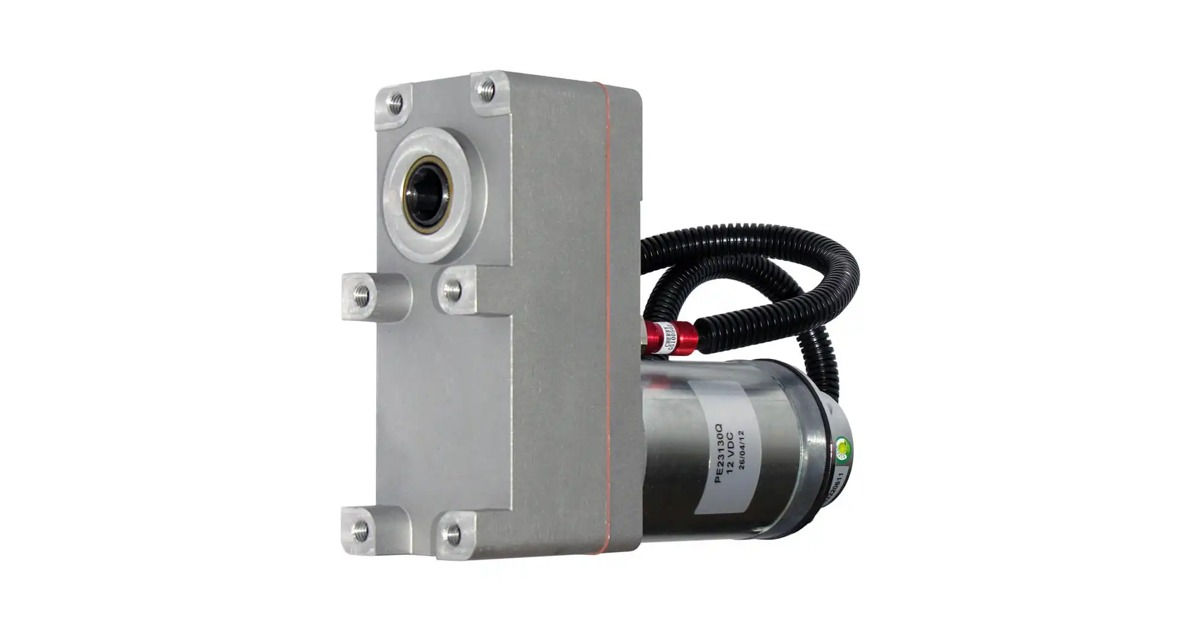

Allient PLA and PLB Parallel-Shaft DC Gearmotors

Allient PLA and PLB Parallel-Shaft DC Gearmotors
Allient PLA and PLB place the geared output parallel to the motor shaft in a compact fractional-horsepower assembly. The manufacturer describes PMDC constructions and optional brushless configurations. PLA and PLB have different voltage, ratio, torque and packaging entries; the same broad layout does not make their operating points interchangeable.
Review Summary
Consider this layout when an offset parallel output solves the machine envelope better than an in-line or right-angle gearmotor. Select the exact assembly from the output load and duty. Include motor technology, drive and service access rather than comparing only the largest torque figure.
PLA overview
12 VDC; 208:1 ratio; 11 Nm; 23 rpm; configuration-specific entries
PLB overview
24 VDC; 17:1 or 29:1 ratios; torque entries 3.1/5.9 Nm
PLB speed entries
130/255 rpm; confirm corresponding selected configuration
Motor options
PMDC as described; brushless option requires suitable electronics
Mechanical layout
Parallel shafts; confirm offset, mounting and output geometry
Operating point
Use one approved winding/ratio; separate family values are not freely combinable
Price
Request a quote for actual motor, gearing and output construction
Applications and Industries
Industrial machine and automation integration
Industrial automation
Request a quote for the exact configuration,quantity and delivery schedule.
