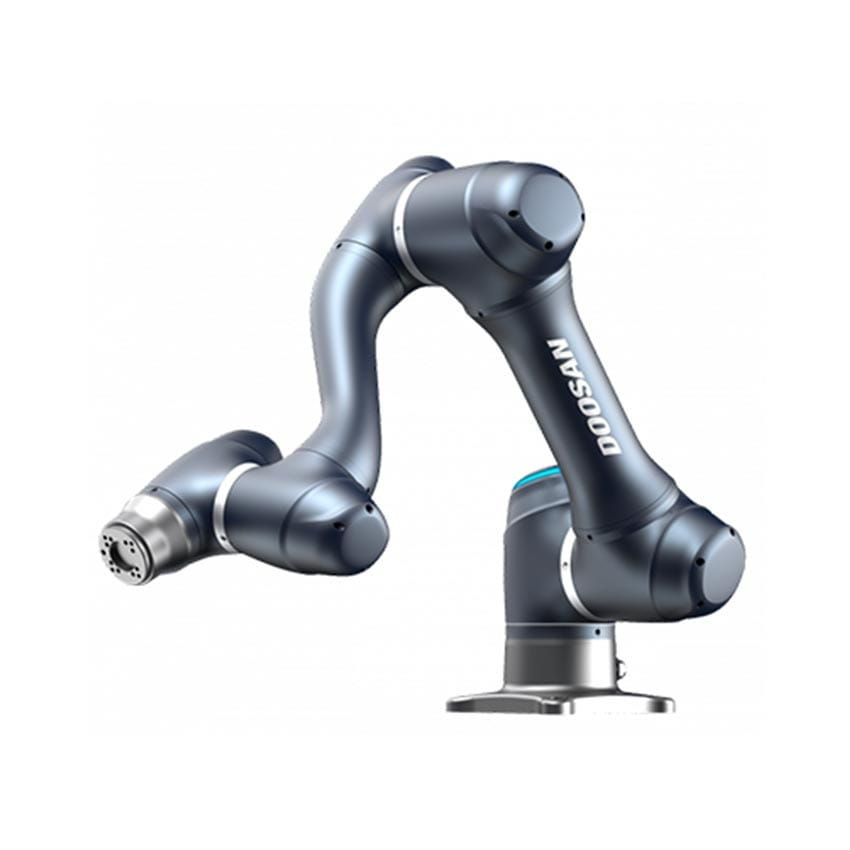

Doosan A0509 Review: Specs, Price and Applications of the 5 kg Cobot
Updated: 2 days ago
The Doosan A0509 is a 6-axis collaborative robot with a payload of 5 kg, a reach of 900 mm and ±0.03 mm repeatability, listed from USD 26,300. This review covers its full specifications, design, programming options, applications and price, so you can decide whether it fits your automation project.
Quick Verdict
The Doosan Robotics A0509 is a 6-axis collaborative robot with a 5 kg payload, a 900 mm reach and a repeatability of ±0.03 mm. It is a light, compact arm for fast pick-and-place, machine tending and small-part assembly. The arm weighs 21 kg, can be mounted in any orientation and has IP54 protection. It runs on the Doosan Controller with DART Platform, with the teach pendant as an option. It is listed from USD 26,300.
Doosan A0509 at a Glance
Payload: 5 kg
Reach: 900 mm
Axes: 6
Repeatability: ±0.03 mm
Speed: Over 1 m/s max. TCP speed
Weight: 21 kg
Price: from USD 26,300
Doosan A0509 Technical Specifications
The table below lists the published specifications of the Doosan A0509.
Specification | Doosan A0509 |
Manufacturer | Doosan Robotics |
Model | A0509 |
Robot type | 6-axis collaborative robot |
Payload | 5 kg |
Reach | 900 mm |
Axes | 6 |
Repeatability | ±0.03 mm |
Speed | Over 1 m/s max. TCP speed |
Controller | Doosan Controller with DART Platform; teach pendant optional |
Interfaces | USB 3.0, RS422/RS485, TCP/IP, Modbus TCP (Master/Slave), Modbus RTU (Master), PROFINET IO (Device), EtherNet/IP (Adapter), 16 digital inputs, 16 digital outputs, 2 analog inputs, 2 analog outputs |
Certifications | CE, KCs, NRTL, EN ISO 10218-1 |
Starting price | From USD 26,300 |
Detailed Technical Data
6 axes
Payload 5 kg
Reach 900 mm
Repeatability ±0.03 mm
Weight 21 kg
Max. TCP speed over 1 m/s
IP54
Mounting any orientation
Design and Build Quality
The A-SERIES is Doosan's fast, lightweight collaborative line. Published build data for the A0509: weight 21 kg; IP54; mounting any orientation.
Programming and Software
Teach Pendant and DART Platform
The A0509 runs on the Doosan Controller with DART Platform; teach pendant optional. Programs are built on the teach pendant or on a PC with Doosan's DART Platform software, and positions can be taught by guiding the arm by hand.
Industrial Communication
Published interfaces are USB 3.0, RS422/RS485, TCP/IP, Modbus TCP (Master/Slave), Modbus RTU (Master), PROFINET IO (Device), EtherNet/IP (Adapter), 16 digital inputs, 16 digital outputs, 2 analog inputs and 2 analog outputs.
Doosan A0509 Applications and Use Cases
Typical applications for the A0509 are palletizing, welding, machine tending, assembly, polishing and inspection.
Light Assembly and Screwdriving
With ±0.03 mm repeatability and a 5 kg payload, the A0509 fits and fastens small components in compact workstations.
Inspection and Testing
The arm carries cameras and probes or presents parts to test fixtures next to operators.
Pick and Place
The 900 mm reach covers trays, feeders and conveyors at a single station.
Doosan A0509 Price and Value
The Doosan A0509 is listed from USD 26,300 on All Things Cobots. End effectors, safety equipment and integration affect the final price and are quoted separately. Prices are indicative, are not final and may change.
Doosan A0509 vs FAIRINO FR5
The closest FAIRINO model by payload is the FR5.
Doosan A0509 | FAIRINO FR5 | |
Payload | 5 kg | 5 kg |
Reach | 900 mm | 922 mm |
Repeatability | ±0.03 mm | ±0.02 mm |
Starting price | From USD 26,300 | From USD 7,999 |
Pros and Cons
Pros
5 kg payload with a 900 mm reach
±0.03 mm repeatability
Any orientation mounting
IP54 protection
Light arm for its payload class
Cons
The 5 kg payload includes the gripper and tooling
End effectors, safety equipment and integration are quoted separately
Starting price is above the FAIRINO FR5 (from USD 7,999)
Who Should Buy the Doosan A0509?
The Doosan A0509 fits electronics, laboratory and light assembly users that need a compact collaborative arm. Buyers focused on price should also compare it with the FAIRINO FR5.
See the full Doosan A0509 product listing on All Things Cobots.
Doosan A0509 FAQ
How much does the Doosan A0509 cost?
The Doosan A0509 is listed from USD 26,300 on All Things Cobots. The price is indicative and may change, and it does not include end effectors, safety equipment or integration.
What is the payload and reach of the Doosan A0509?
The A0509 has a payload of 5 kg and a reach of 900 mm.
How accurate is the Doosan A0509?
Its published repeatability is ±0.03 mm.
How many axes does the Doosan A0509 have?
The A0509 has 6 axes.
How is the Doosan A0509 programmed?
It is programmed on the teach pendant or with Doosan's DART Platform software, and positions can be taught by hand guiding.
How much does the Doosan A0509 weigh?
Published weight 21 kg.
What is the IP rating of the Doosan A0509?
Published protection: IP54.
What is the Doosan A0509 used for?
Typical applications are palletizing, welding, machine tending, assembly, polishing and inspection.
Specifications and prices are based on manufacturer and distributor information. Prices are indicative, are not final and may change.
