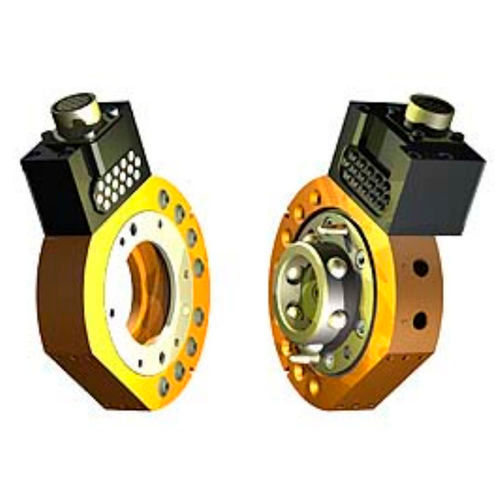

ATI QC-210 Review: Specs, Price and Applications
Updated: 2 days ago
The ATI QC-210 is a robot tool changer with a payload of up to 300 kg and ±0.0152 mm repeatability, listed from USD 5,500. This review covers its full specifications, design, integration, applications and price, so you can decide whether it fits your automation project.
Quick Verdict
The ATI QC-210 is a pneumatic heavy-duty robotic tool changer with a suggested payload limit of 300 kg and static moment capacities of 2710 Nm in X/Y and 2260 Nm in Z. It is designed for automatic tool exchange on large robots in applications such as spot welding and heavy material handling, with a fail-safe locking mechanism that develops 31000 N of locking force at 5.5 bar. The master plate weighs 5.24 kg and the tool plate 2.65 kg, giving 7.89 kg when coupled. The coupling repeats to within 0.0152 mm, and utility modules for air, fluid, power and signals mount on the flats of the body. It is listed from USD 5,500.
ATI QC-210 at a Glance
Product type: Robot tool changer
Payload: 300 kg
Repeatability: ±0.0152 mm
Weight: 5.24 kg master, 2.65 kg tool, 7.89 kg coupled
Price: from USD 5,500
ATI QC-210 Technical Specifications
The table below lists the published specifications of the ATI QC-210.
Specification | ATI QC-210 |
Manufacturer | ATI Industrial Automation |
Model | QC-210 |
Product type | Robot tool changer |
Payload | 300 kg |
Repeatability | ±0.0152 mm |
Starting price | From USD 5,500 |
Detailed Technical Data
Suggested payload 300 kg
Static moment capacity 2710 Nm (X/Y), 2260 Nm (Z)
Weight 5.24 kg master, 2.65 kg tool, 7.89 kg coupled
Positional repeatability 0.0152 mm
Pneumatic fail-safe locking mechanism, 31000 N locking force at 5.5 bar
Maximum locking distance 2 mm
Design and Build Quality
The QC-210 is a robot tool changer made by ATI Industrial Automation. Published build data: weight 5.24 kg master, 2.65 kg tool, 7.89 kg coupled.
Integration and Compatibility
The QC-210 is connected to the robot or line controller. Confirm mechanical and software compatibility with your robot model before ordering.
ATI QC-210 Applications and Use Cases
The ATI QC-210 is a pneumatic heavy-duty robotic tool changer with a suggested payload limit of 300 kg and static moment capacities of 2710 Nm in X/Y and 2260 Nm in Z. It is designed for automatic tool exchange on large robots in applications such as spot welding and heavy material handling, with a fail-safe locking mechanism that develops 31000 N of locking force at 5.5 bar. It is used in the automotive, electronics, metalworking, plastics, food and beverage, pharmaceuticals and logistics industries.
Multi-Tool Cells
The QC-210 lets one robot switch between grippers and other tools within the same cycle.
Fast Changeover
The QC-210 shortens the time needed to change tooling between product variants.
Maintenance
The QC-210 lets a tool be removed and replaced without re-teaching the cell.
ATI QC-210 Price and Value
The ATI QC-210 is listed from USD 5,500 on All Things Cobots. Mounting kits, cabling, software options and integration affect the final price and are quoted separately. Prices are indicative, are not final and may change.
Pros and Cons
Pros
Payload of up to 300 kg
±0.0152 mm repeatability
Cons
Compatibility with the robot and controller must be confirmed before ordering
Mounting, cabling and integration are quoted separately
Who Should Buy the ATI QC-210?
The ATI QC-210 fits robot users and integrators who need one robot to work with several tools.
See the full ATI QC-210 product listing on All Things Cobots.
ATI QC-210 FAQ
How much does the ATI QC-210 cost?
The ATI QC-210 is listed from USD 5,500 on All Things Cobots. The price is indicative and may change, and it does not include installation or integration.
What is the ATI QC-210?
The ATI QC-210 is a pneumatic heavy-duty robotic tool changer with a suggested payload limit of 300 kg and static moment capacities of 2710 Nm in X/Y and 2260 Nm in Z. It is designed for automatic tool exchange on large robots in applications such as spot welding and heavy material handling, with a fail-safe locking mechanism that develops 31000 N of locking force at 5.5 bar.
What payload does the ATI QC-210 handle?
The published payload of the QC-210 is 300 kg.
How accurate is the ATI QC-210?
Its published repeatability is ±0.0152 mm.
How much does the ATI QC-210 weigh?
Published weight 5.24 kg master, 2.65 kg tool, 7.89 kg coupled.
Is the ATI QC-210 compatible with my robot?
Compatibility depends on the robot flange, payload and controller interface. Confirm it with the supplier before ordering.
Specifications and prices are based on manufacturer and distributor information. Prices are indicative, are not final and may change.
