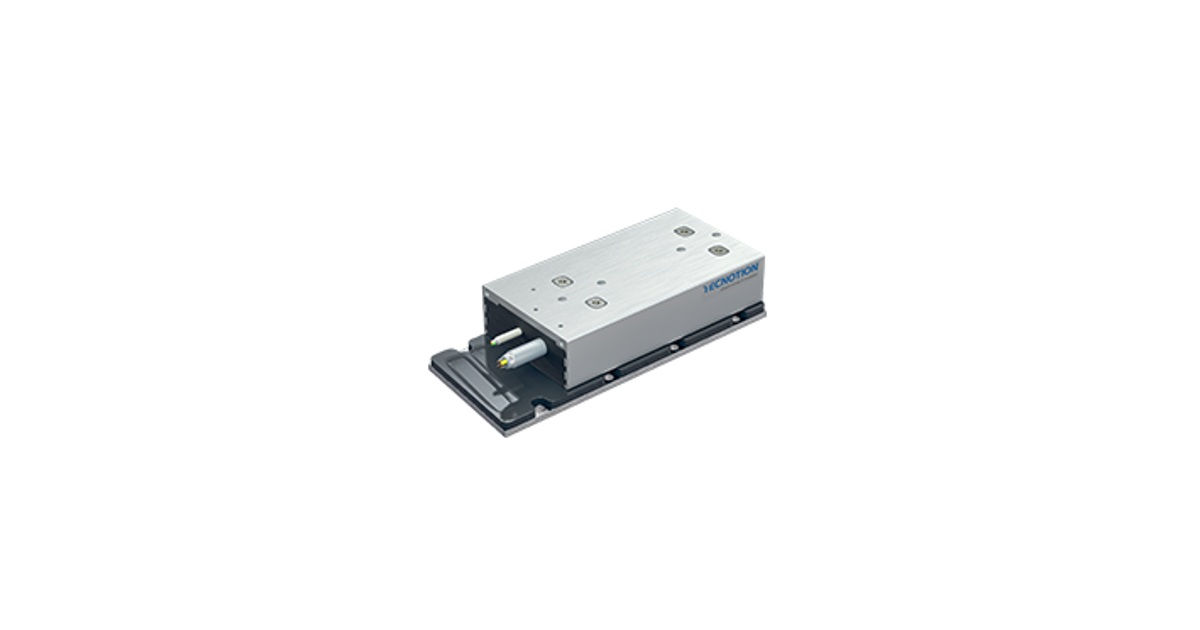

Tecnotion TL Linear Motors
Tecnotion TL Linear Motors
Tecnotion TL is a iron-core linear-motor family. Its current manufacturer table lists 210 – 1680 N continuous force and 400 – 3200 N peak force across the selected configurations. These are motor-family limits, not a payload or finished-stage accuracy specification.
Review Summary
Consider Tecnotion TL Linear Motors for oEM precision linear-motion axes using a matched TL coil, magnetic track, guidance and controller. Establish the required operating point and installation interfaces before choosing the configuration, and use a representative loaded cycle as the acceptance basis.
Family TL Topology iron-core linear motor Current manufacturer continuous force 210 – 1680 N Current manufacturer peak force 400 – 3200 N Manufacturer ultimate-force limit 450 – 3600 N; separate from peak and continuous limits Coil Units TL6 – TL9 – TL12 – TL15 – TL18 – TL24 – TL48 Magnet Plates TL192 – TL288 Applications and Industries
OEM precision linear-motion axes using a matched TL coil, magnetic track, guidance and controller.
Manufacturing and automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Family | TL |
| Topology | iron-core linear motor |
| Current manufacturer continuous force | 210 – 1680 N |
| Current manufacturer peak force | 400 – 3200 N |
| Manufacturer ultimate-force limit | 450 – 3600 N; separate from peak and continuous limits |
| Coil Units | TL6 – TL9 – TL12 – TL15 – TL18 – TL24 – TL48 |
| Magnet Plates | TL192 – TL288 |
