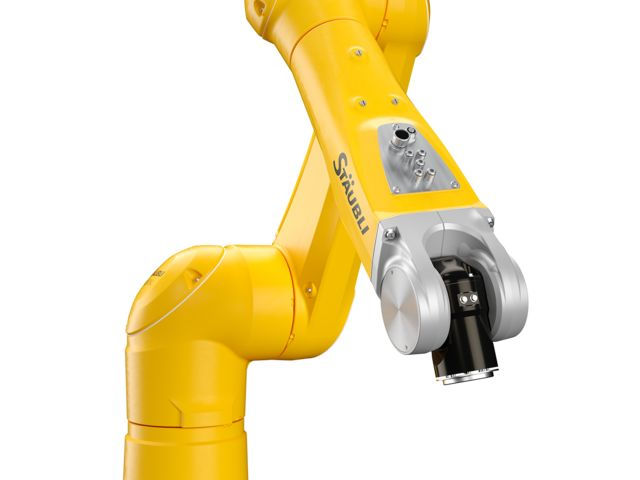

Staubli Robotics TX2-90
The Stäubli TX2-90 is a 6-axis industrial robot with a maximum payload of 14 kg, a reach of 1000 mm and a repeatability of ±0.02 mm. It is built for medium-sized cells that need high speed, precision and rigidity, in sectors such as metalworking, electronics and pharmaceuticals. The arm can be mounted in any orientation (360°), is rated IP65 (IP67 with the pressurized arm) and runs on the Stäubli CS9 LP controller. Its maximum Cartesian speed is 10.9 m/s.
The price shown is indicative only. It is not final and may change; contact us for a confirmed quote.
- Payload: 14 kg
- Reach: 1000 mm
- Repeatability: ±0.02 mm
- Speed: 10.9 m/s
- Axes: 6
- Controller: Stäubli CS9 LP
- Interfaces: EtherCAT; EtherCAT FSoE; EtherNet/IP; PROFINET; Sercos III; POWERLINK; Modbus; 2 Ethernet ports; 1 EtherCAT port; 2 real-time Ethernet ports; RS-232 serial link; 2 USB ports; fast I/O
- Certifications: SIL 3 / PL e safety functions: safe limited speed, safe stop, safe zone, safe tool; cleanroom ISO 14644-1 class 5
- Details: 6 axes; max. payload 14 kg; reach 1000 mm; repeatability ±0.02 mm; max. Cartesian speed 10.9 m/s; mounting in any orientation (360°); protection IP65 (IP67 pressurized); controller CS9 LP.
