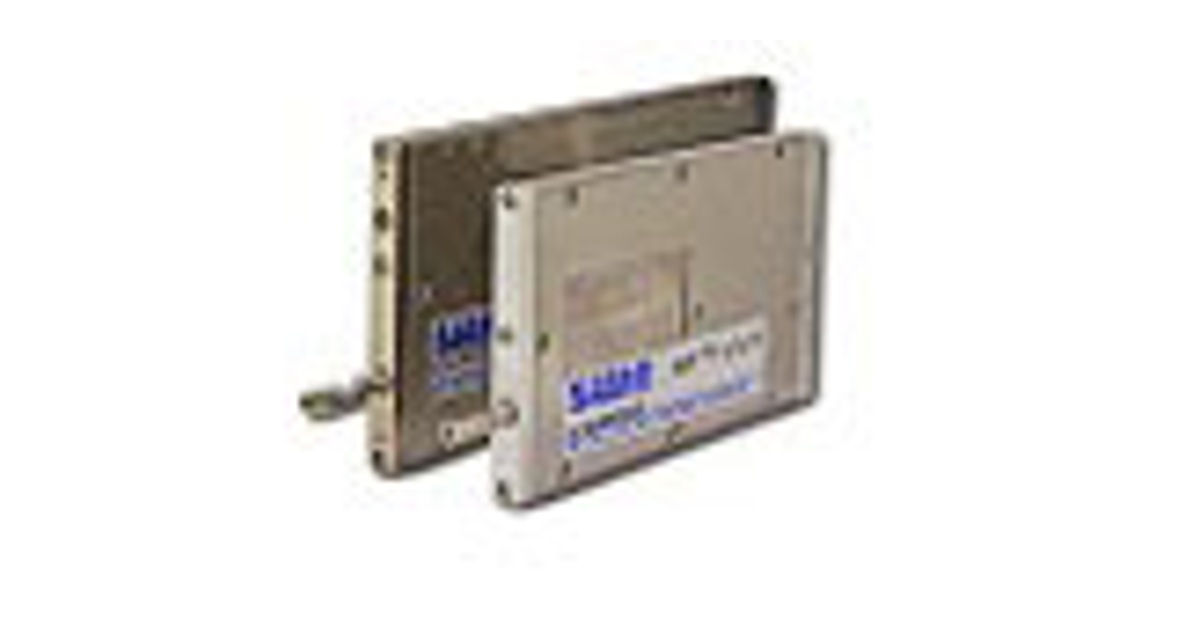

SMAC LCA6 Moving-Coil Linear Actuators
SMAC LCA6 Moving-Coil Linear Actuators
SMAC LCA6 is a 6 mm-wide moving-coil linear actuator with cross-roller guidance and a 10 mm stroke. The supplied specification lists 3.5 N peak force at 24 V, 38 g moving mass and 210 g total mass excluding cable. Position, velocity and force functions require the selected compatible control arrangement.
Review Summary
Consider SMAC LCA6 Moving-Coil Linear Actuators for compact electronics handling, biomedical dispensing and controlled-contact inspection tasks. Establish the required operating point and installation interfaces before choosing the configuration, and use a representative loaded cycle as the acceptance basis.
Model LCA6 Width 6 mm Stroke 10 mm Guidance Cross-roller Peak force listed 3.5 N at 24 V Moving mass 38 g Total mass 210 g excluding cable Encoder increment listed 0.1–5 µm depending on configuration Applications and Industries
Compact electronics handling, biomedical dispensing and controlled-contact inspection tasks.
Manufacturing and automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Model | LCA6 |
| Width | 6 mm |
| Stroke | 10 mm |
| Guidance | Cross-roller |
| Peak force listed | 3.5 N at 24 V |
| Moving mass | 38 g |
| Total mass | 210 g excluding cable |
| Encoder increment listed | 0.1–5 µm depending on configuration |
