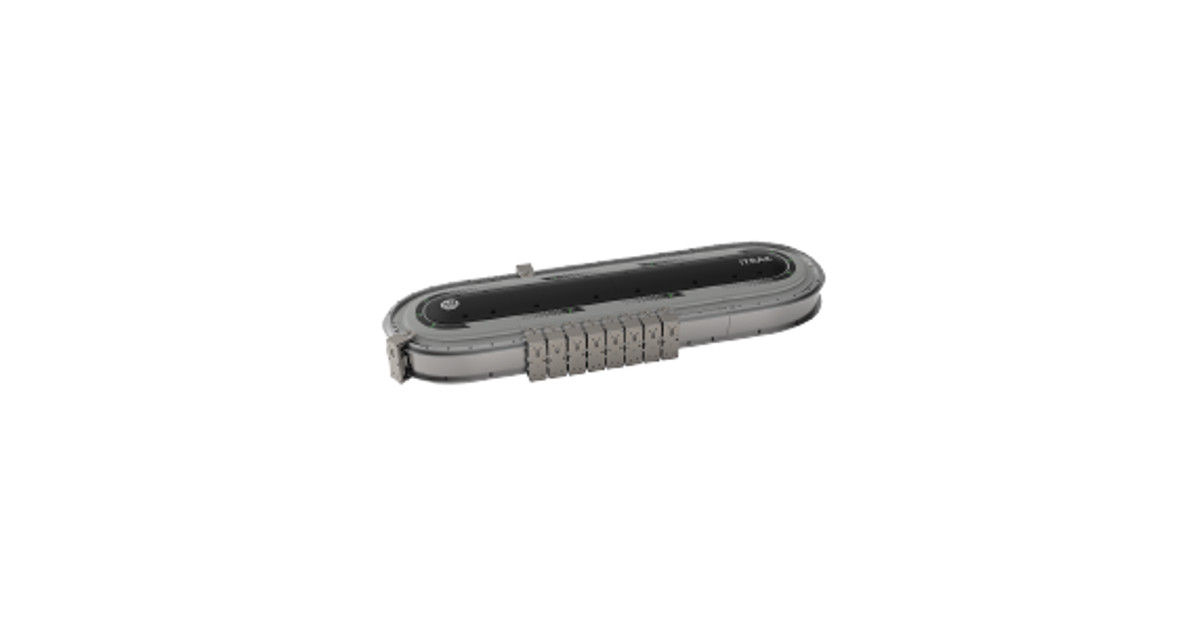

Rockwell Automation iTRAK 5730 Intelligent Track System
Rockwell Automation iTRAK 5730 Intelligent Track System
Rockwell Automation iTRAK 5730 is a modular independent-mover track system for controlled product transport, combining linear motor propulsion, identified movers and an integrated machine-control architecture for lighter-payload applications.
Review Summary
iTRAK 5730 is a strong candidate where independent product motion can address a demonstrated machine bottleneck. Its speed, force, spacing and repeatability figures describe different limits; the useful throughput depends on the complete track, payload, tooling and process sequence.
Mover spacing Manufacturer minimum mover pitch: 50 mm; tooling and process clearance can require more Motion capability Up to 5 m/s; 100 N peak and 36 N continuous force under specified conditions Payload and repeatability Manufacturer overview: up to 3 kg payload, higher at low speed; ±0.01 mm repeatability Environmental configuration IP66 requires the specified infield cover Control architecture Gigabit Ethernet integration; exact supported controller, software and firmware govern Protective functions Manufacturer describes STO and SS1 at SIL3/PL e within the supported safety configuration Applications and Industries
Packaging machinery
Packaging
Request a quote for the exact configuration,quantity and delivery schedule.
| Mover spacing | Manufacturer minimum mover pitch: 50 mm; tooling and process clearance can require more |
| Motion capability | Up to 5 m/s; 100 N peak and 36 N continuous force under specified conditions |
| Payload and repeatability | Manufacturer overview: up to 3 kg payload, higher at low speed; ±0.01 mm repeatability |
| Environmental configuration | IP66 requires the specified infield cover |
| Control architecture | Gigabit Ethernet integration; exact supported controller, software and firmware govern |
| Protective functions | Manufacturer describes STO and SS1 at SIL3/PL e within the supported safety configuration |
