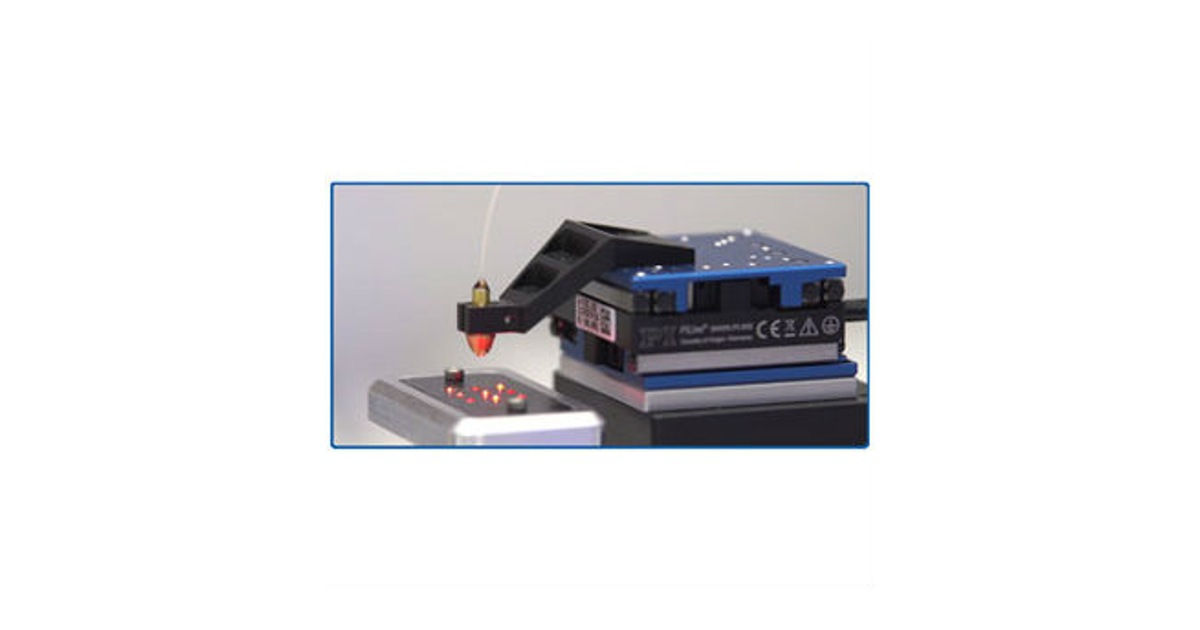

PI U-723 PILine Ultrasonic XY Stage
PI U-723 PILine Ultrasonic XY Stage
U-723.25 is a compact XY stage driven by ultrasonic piezo motors. The current PI table lists 22 × 22 mm travel, 200 mm/s maximum velocity per axis and 10 nm incremental encoder resolution. Mechanical self-locking holds the stopped stage without continuous drive current; it does not turn the unit into a certified safety brake.
Review Summary
Consider U-723 for small-sample positioning and micromanipulation where space and heat at rest matter. Its 10 nm sensor increment must be distinguished from 0.1 µm typical minimum incremental motion and 0.2 µm typical bidirectional repeatability in the current table.
Travel 22 mm X ×22 mm Y Maximum velocity 200 mm/s per axis; specified conditions apply Sensor Incremental optical linear encoder;10 nm resolution Minimum incremental motion 0.1 µm typical Bidirectional repeatability 0.2 µm typical Load / drive force 5 N Z push-load scope;2 N typical drive force per axis Controller examples C-867.2U2 or specified C-867.10C885 module Applications and Industries
Compact sample positioning, biotechnology, micromanipulation and precision automation with limited space.
Industrial automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Travel | 22 mm X ×22 mm Y |
| Maximum velocity | 200 mm/s per axis; specified conditions apply |
| Sensor | Incremental optical linear encoder;10 nm resolution |
| Minimum incremental motion | 0.1 µm typical |
| Bidirectional repeatability | 0.2 µm typical |
| Load / drive force | 5 N Z push-load scope;2 N typical drive force per axis |
| Controller examples | C-867.2U2 or specified C-867.10C885 module |
