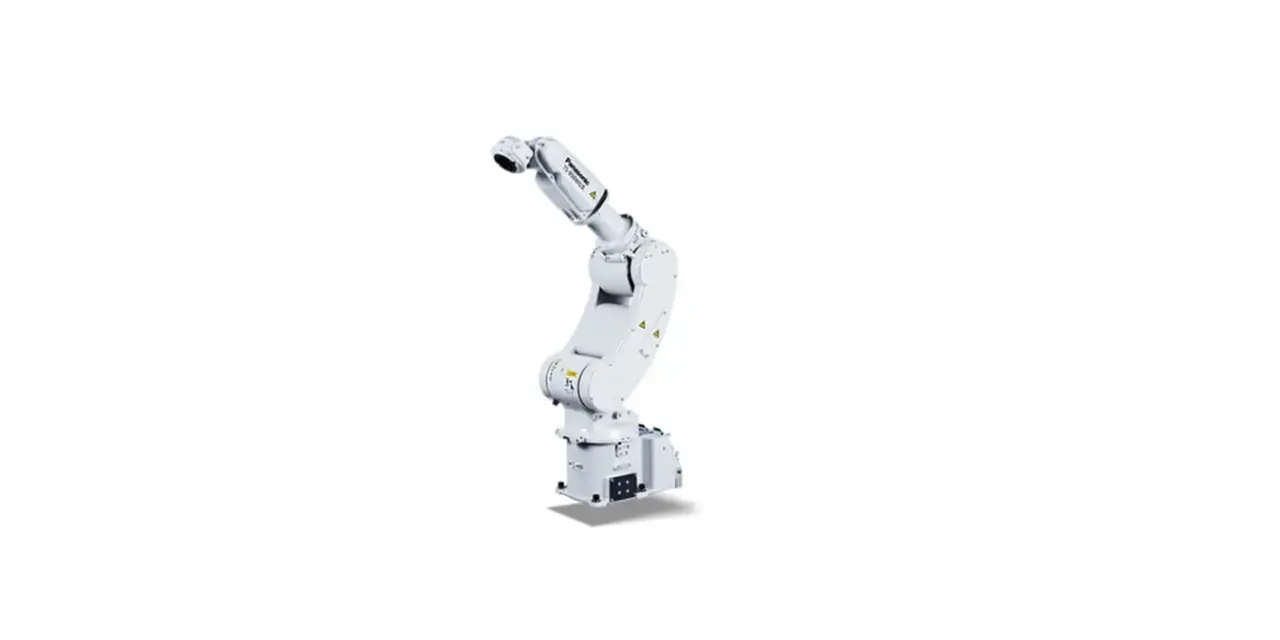

Panasonic TS Series
The Panasonic TS-800 and TS-950 are compact six-axis welding robots with 841 and 971 mm reach, 8 kg payload, ±0.05 mm repeatability and an average axis speed of 540°/s.
The TS-800 and TS-950 are compact arms for small welded parts in tight cells. They carry 8 kg, reach 841 or 971 mm and repeat to ±0.05 mm, the tightest of Panasonic's welding robots. Panasonic quotes an average axis speed of 540°/s, with the wrist twisting at 1,040°/s. At 55 to 56 kg they can be mounted on the floor, ceiling or wall, and they support either external or through-arm cable management.
Pricing is available on request. Any price is indicative only, is not final and may change; contact us for a confirmed quote.
Full review: Panasonic TS Series Review: Specs and Uses of the Compact High-Speed Welding Robots
- Payload: TS-800: 8 kg; TS-950: 8 kg
- Max reach: TS-800: 841 mm; TS-950: 971 mm
- Repeatability: TS-800: ±0.05 mm; TS-950: ±0.05 mm
- Weight: TS-800: 55 kg; TS-950: 56 kg
- Twist speed: TS-800: 1,040°/s; TS-950: 1,040°/s
- Price: Price on request
