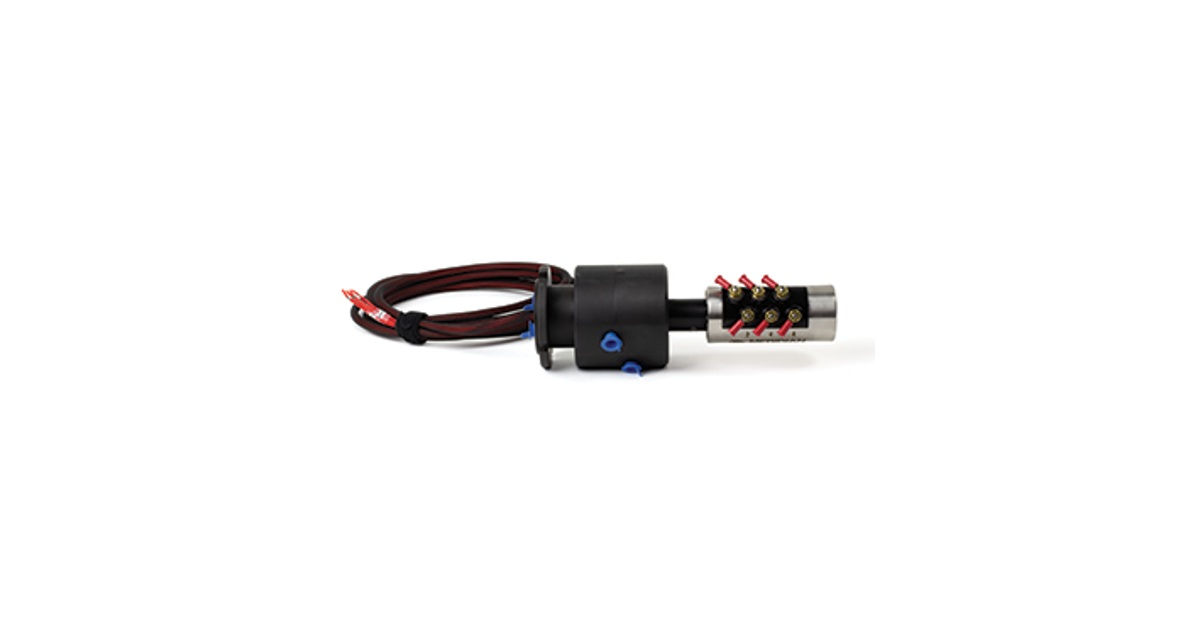

Meridian Laboratory ROTOCON RU Rotary Union and Slip Ring Combinations
Meridian Laboratory ROTOCON RU Rotary Union and Slip Ring Combinations
ROTOCON RU combinations integrate a fluid or gas rotary union with a ROTOCON electrical connection. They serve machines that must transfer media and electrical power or signals along a common rotating assembly. Meridian Laboratory supplies both standard and custom arrangements; a specific union, passage map and electrical model define the actual product.
Review Summary
Consider a RU combination when shared mounting and coordinated supply can simplify a machine that requires both media and electricity across rotation. Select it from a defined operating point. The category’s maximum speed, pressure, passage count and temperature range describe configuration options and must never be treated as simultaneous ratings of one universal assembly.
Function Combined rotary media transfer and configured electrical power or signals Mechanical offering Through-hole, end-of-shaft or flange mounting; approved drawing required Housing options 6061 aluminium or 304 stainless steel, by configuration Passage capability headline Up to 20 passages; exact media allocation and union model apply Speed capability headline Up to 15000 rpm for suitable configurations, not every combined assembly Pressure capability headline Up to 23000 psi; explicitly speed- and media-dependent Temperature options headline −321 to 900°F depending on options; not one universal seal or assembly range Electrical selection Exact ROTOCON model determines circuits, current, voltage and electrical limits Price Request a quote for media, electrical, mounting and acceptance scope Applications and Industries
Rotary indexing tables, bottle capping, wafer polishing, lathe chucks and through-tool coolant machinery
Industrial automation
Request a quote for the exact configuration,quantity and delivery schedule.
| Function | Combined rotary media transfer and configured electrical power or signals |
| Mechanical offering | Through-hole, end-of-shaft or flange mounting; approved drawing required |
| Housing options | 6061 aluminium or 304 stainless steel, by configuration |
| Passage capability headline | Up to 20 passages; exact media allocation and union model apply |
| Speed capability headline | Up to 15000 rpm for suitable configurations, not every combined assembly |
| Pressure capability headline | Up to 23000 psi; explicitly speed- and media-dependent |
| Temperature options headline | −321 to 900°F depending on options; not one universal seal or assembly range |
| Electrical selection | Exact ROTOCON model determines circuits, current, voltage and electrical limits |
| Price | Request a quote for media, electrical, mounting and acceptance scope |
